Suncor US Anchor Shackle - 316 Stainless Steel
Suncor US Anchor Shackle - 316 Stainless Steel
SKU:STA-183ffb
Premium Suncor US Anchor Shackle - 316 Stainless Steel for marine use, ASME B30.26-2010 compliant
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Suncor US Anchor Shackle - 316 Stainless Steel
$59.99
Quantity: 1
Claim Your Seller Account
Suncor US Anchor Shackle - 316 Stainless Steel
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

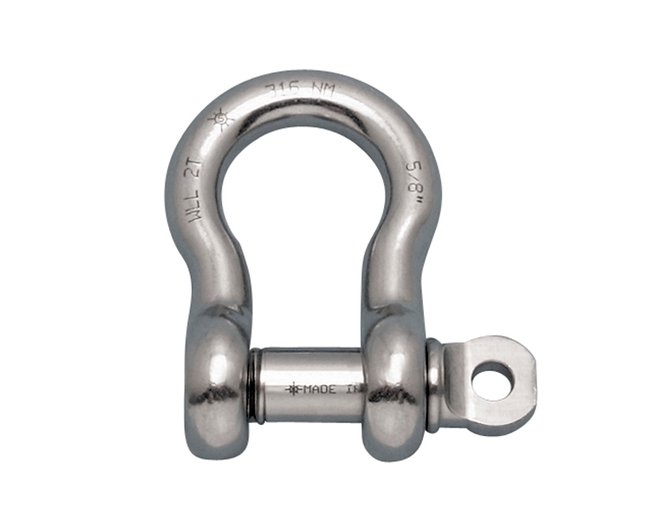

The Suncor US Anchor Shackle is expertly crafted from high-quality 316-NM stainless steel, offering unmatched durability and corrosion resistance for saltwater applications. With an oversized screw pin and a working load limit of 10,000 lb, this shackle ensures reliable performance in demanding environments. Meeting ASME B30.26-2010, Fed Spec RR-C-271, and DFARS compliance standards, this Suncor anchor shackle is designed to excel in both strength and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

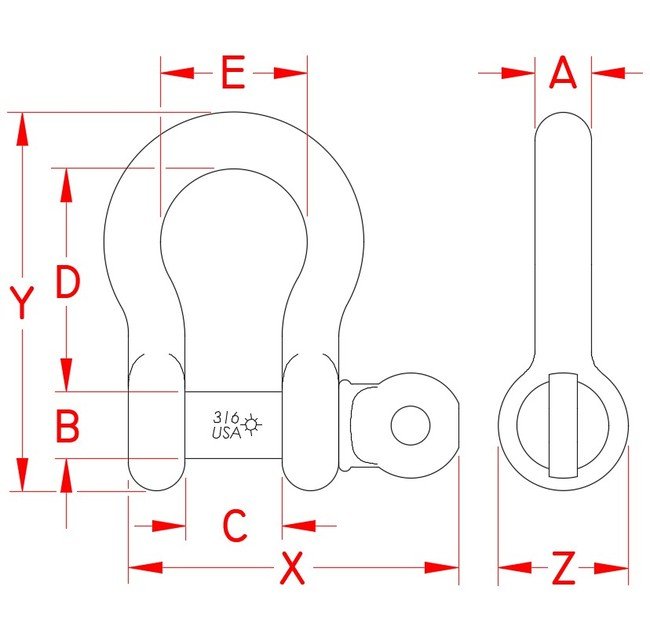

Specifications Dimension A
1 in
Specifications Dimension B
1.13 in
Specifications Dimension C
1.70 in
Specifications Dimension D
3.80 in
Specifications Dimension E
2.60 in
Specifications Dimension X
5.35 in
Specifications Dimension Y
6.44 in
Specifications Dimension Z
2.20 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
4.62 lb
Specifications Working Load Limit Wll
10,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
