Suncor US Anchor Shackle - 316 Stainless Steel
Suncor US Anchor Shackle - 316 Stainless Steel
SKU:STA-e6cdf3
Premium 316 stainless steel US Anchor Shackle for marine use, ASME B30.26-2010 compliant, made in the USA.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Suncor US Anchor Shackle - 316 Stainless Steel
$39.99
Quantity: 1
Claim Your Seller Account
Suncor US Anchor Shackle - 316 Stainless Steel
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

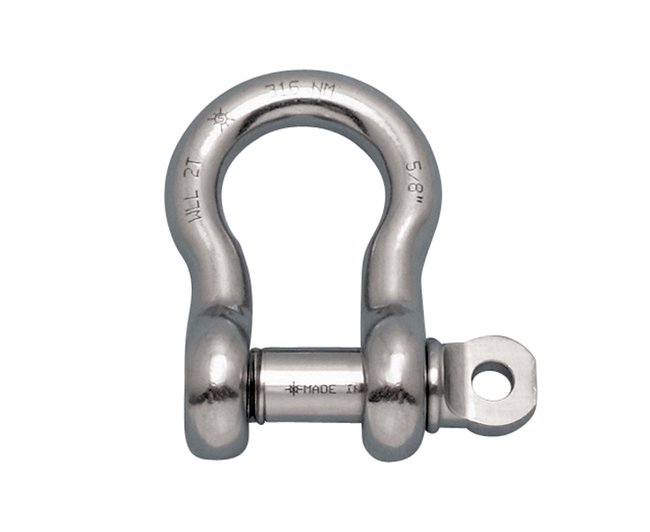

The Suncor US Anchor Shackle is crafted from grade 316 stainless steel with an oversize screw pin, perfect for demanding saltwater environments. Designed to meet ASME B30.26-2010 standards, this DFARS compliant shackle is I/W/A Fed Spec RR-C-271, Type IVA, Class 2 certified, ensuring exceptional durability and reliability. Made in the USA, this stainless steel shackle has a working load limit of 2000 lb, making it a robust choice for marine applications.
Product Specifications

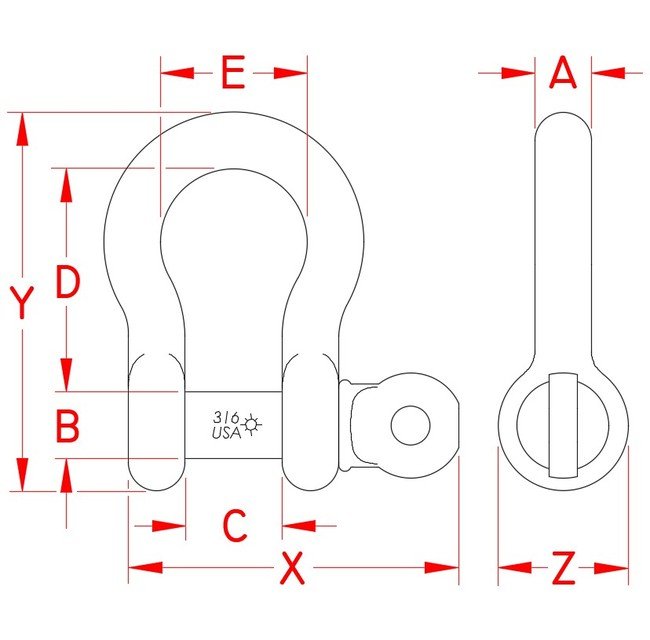

Specifications Dimension A
7/16 in
Specifications Dimension B
0.50 in
Specifications Dimension C
0.72 in
Specifications Dimension D
1.77 in
Specifications Dimension E
1.10 in
Specifications Dimension X
2.89 in
Specifications Dimension Y
2.50 in
Specifications Dimension Z
1.01 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
0.42 lb
Specifications Working Load Limit Wll
2000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
