Suncor US Anchor Shackle | 316 Stainless Steel | DFARS Compliant
Suncor US Anchor Shackle | 316 Stainless Steel | DFARS Compliant
SKU:STA-44faa4
Explore the Suncor US Anchor Shackle, built with 316 stainless steel, ideal for salt water use, ASME B30.26-2010 and DFARS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Suncor US Anchor Shackle | 316 Stainless Steel | DFARS Compliant
$24.99
Quantity: 1
Claim Your Seller Account
Suncor US Anchor Shackle | 316 Stainless Steel | DFARS Compliant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

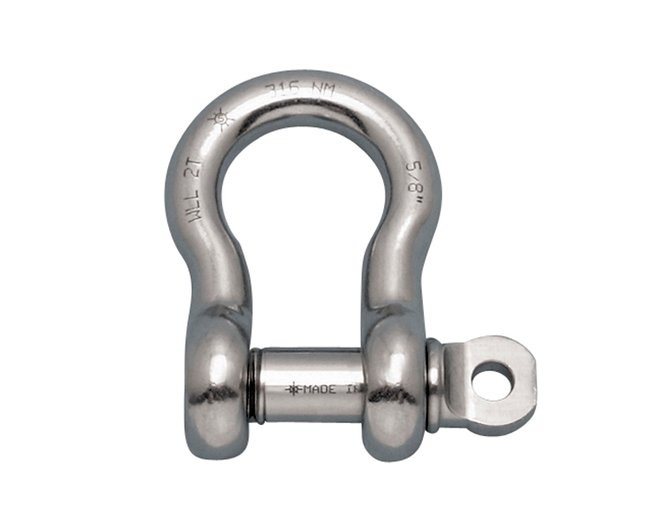

The Suncor US Anchor Shackle is crafted from grade 316-NM stainless steel with an oversize screw pin, making it perfect for salt water applications. Meeting ASME B30.26-2010 and DFARS compliance, this shackle assures quality and durability. With a working load limit of 1500 lb, it's drop-forged in the USA to stringent standards, ensuring reliability in critical operations.

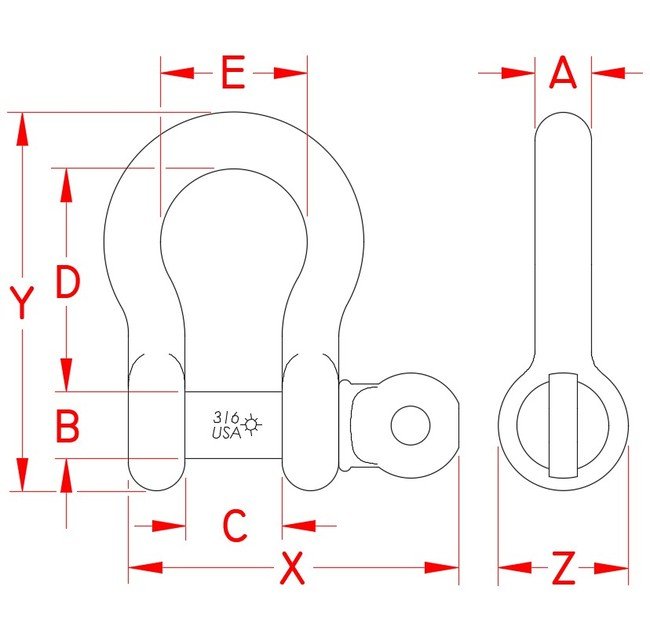

Product Specifications
Specifications Dimension A
3/8 in
Specifications Dimension B
0.44 in
Specifications Dimension C
0.66 in
Specifications Dimension D
1.41 in
Specifications Dimension E
1.00 in
Specifications Dimension X
2.26 in
Specifications Dimension Y
2.42 in
Specifications Dimension Z
0.92 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
0.29 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
