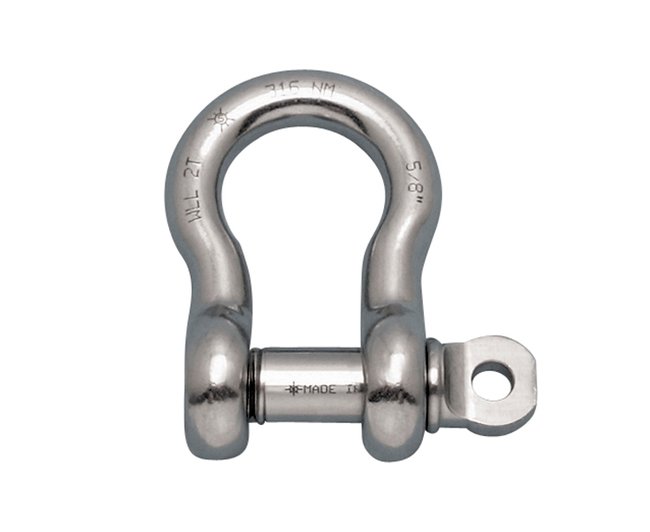

Suncor US Anchor Shackle | Stainless Steel 316-NM, WLL 4,000 lb
Suncor US Anchor Shackle | Stainless Steel 316-NM, WLL 4,000 lb
SKU:STA-9dbc60
High-quality Suncor US Anchor Shackle, made of 316-NM stainless steel, WLL 4,000 lb, ASME & DFARS compliant.
Regular price

            $29.99


          Regular price






          Sale price

          $29.99



        Unit price



           per




    Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

The Suncor US Anchor Shackle, crafted from grade 316-NM stainless steel, features an oversize screw pin, making it perfect for saltwater applications. This anchor shackle meets ASME B30.26-2010 Section 26-0 American National Standard and DFARS compliance, as well as Fed Spec RR-C-271, Type IVA, Class 2 requirements. With a working load limit of 4,000 lb, this drop-forged shackle is Made in the USA, ensuring top-notch quality and performance in various rigging applications.

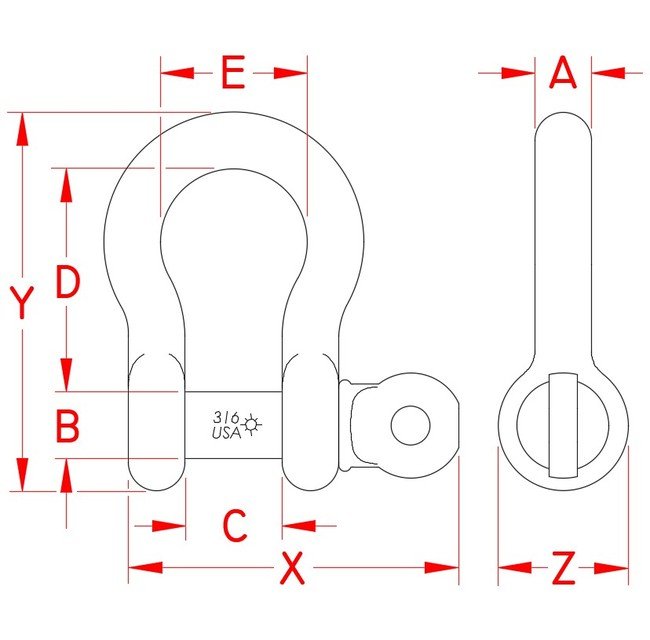

Product Specifications
                  Specifications Dimension A

                5/8 in

                  Specifications Dimension B

                0.75 in

                  Specifications Dimension C

                1.02 in

                  Specifications Dimension D

                2.41 in

                  Specifications Dimension E

                1.60 in

                  Specifications Dimension X

                3.41 in

                  Specifications Dimension Y

                4.18 in

                  Specifications Dimension Z

                1.46 in

                  Specifications Fabrication Type

                Drop Forged

                  Specifications Load Rated

                Yes

                  Specifications Made In

                Made in USA

                  Specifications Material

                316-NM Stainless Steel

                  Specifications Specification

                ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | Type IVA

                  Specifications Suncor Exclusive

                Yes

                  Specifications Weight

                1.27 lb

                  Specifications Working Load Limit Wll

                4,000 lb

                  CAGE

                1CXX6

                  NAICS

                332999

                  PSC

                4030
