Suncor US Bolt Anchor Shackle - 316 Stainless Steel
Suncor US Bolt Anchor Shackle - 316 Stainless Steel
SKU:STA-3f0ab2
Premium Suncor US Bolt Anchor Shackle for marine use, 316 stainless steel, ASME & Fed. Spec. compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Suncor US Bolt Anchor Shackle - 316 Stainless Steel
$29.99
Quantity: 1
Claim Your Seller Account
Suncor US Bolt Anchor Shackle - 316 Stainless Steel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

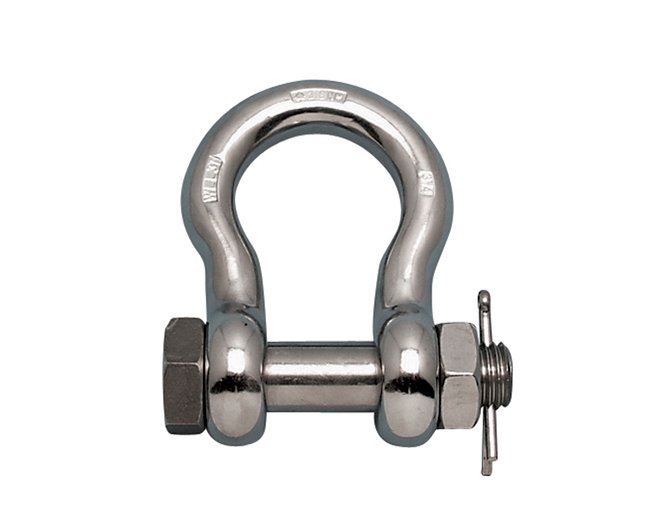

The Suncor US Bolt Anchor Shackle, manufactured in the USA from high-grade 316-NM stainless steel, is a robust marine accessory designed with an oversize bolt for enhanced durability. Ideal for saltwater applications, this shackle securely links anchors to chains or swivels. With a working load limit of 2000 lb, this drop-forged shackle meets stringent ASME B30.26-2010, Class 3, Fed. Spec. RR-C-271, Type IVA standards, ensuring reliability in demanding environments.
Product Specifications

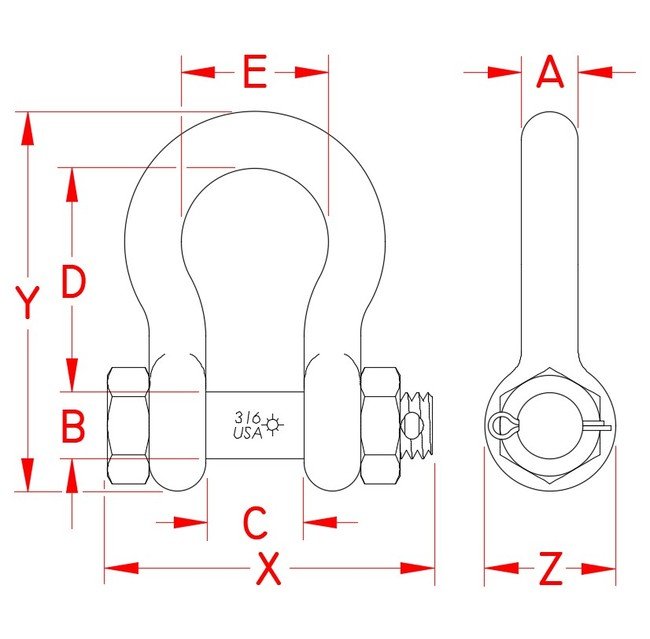

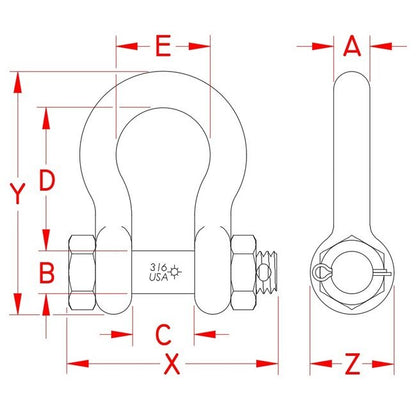

Specifications Dimension A
7/16 in
Specifications Dimension B
0.50 in
Specifications Dimension C
0.72 in
Specifications Dimension D
1.77 in
Specifications Dimension E
1.10 in
Specifications Dimension X
2.65 in
Specifications Dimension Y
2.92 in
Specifications Dimension Z
1.01 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
0.47 lb
Specifications Working Load Limit Wll
2000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
