Suncor US Bolt Anchor Shackle, 316 Stainless Steel, 3/4"

Suncor US Bolt Anchor Shackle, 316 Stainless Steel, 3/4"

SKU:STA-025abd

Premium Suncor US Bolt Anchor Shackle, 316 Stainless Steel, 6,000 lb WLL, Ideal for Rigging, ASME B30.26 Compliant

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Suncor US Bolt Anchor Shackle, 316 Stainless Steel, 3/4"

Suncor US Bolt Anchor Shackle, 316 Stainless Steel, 3/4"

$49.99

Quantity: 1

Claim Your Seller Account

Suncor US Bolt Anchor Shackle, 316 Stainless Steel, 3/4"

Suncor US Bolt Anchor Shackle, 316 Stainless Steel, 3/4"

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

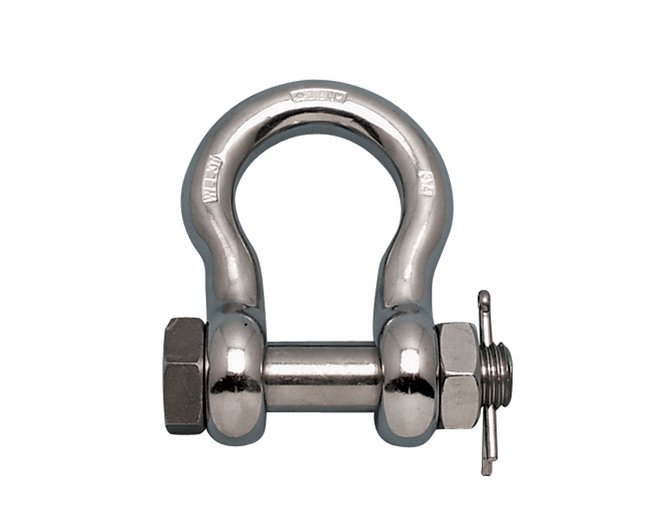

The Suncor US Bolt Anchor Shackle is expertly crafted in the USA from premium grade 316 stainless steel, ensuring exceptional durability and corrosion resistance, making it perfect for saltwater applications. Featuring an oversize bolt for secure connections, this anchor shackle, I/A/W Fed Spec RR-C-271, Type IVA, Class 3, guarantees a Working Load Limit of 6,000 lb. Ideal for anchoring systems and rigging setups, it meets ASME B30.26-2010, ensuring reliable performance in demanding environments.

Product Specifications

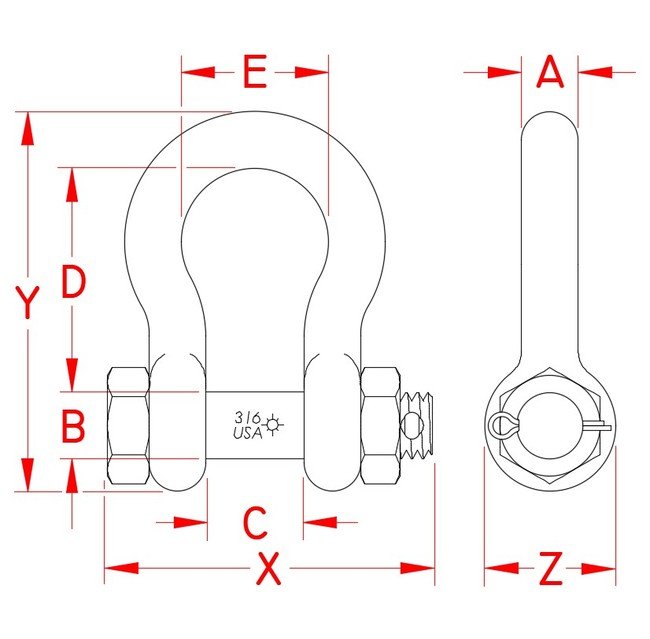

Specifications Dimension A
3/4 in
Specifications Dimension B
0.88 in
Specifications Dimension C
1.25 in
Specifications Dimension D
2.84 in
Specifications Dimension E
1.90 in
Specifications Dimension X
4.21 in
Specifications Dimension Y
4.92 in
Specifications Dimension Z
1.73 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
2.42 lb
Specifications Working Load Limit Wll
6,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
