Suncor US Bolt Anchor Shackle - 316 Stainless Steel, Made in USA

Name: Suncor US Bolt Anchor Shackle - 316 Stainless Steel, Made in USA
Brand: Suncor Stainless, Inc.
SKU: STA-80f5f1
Price: 24.99 USD
Availability: OutOfStock

SKU:STA-80f5f1

Suncor US Bolt Anchor Shackle: Grade 316 stainless steel, oversize bolt, ideal for marine use, Meets Fed Spec RR-C-271

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

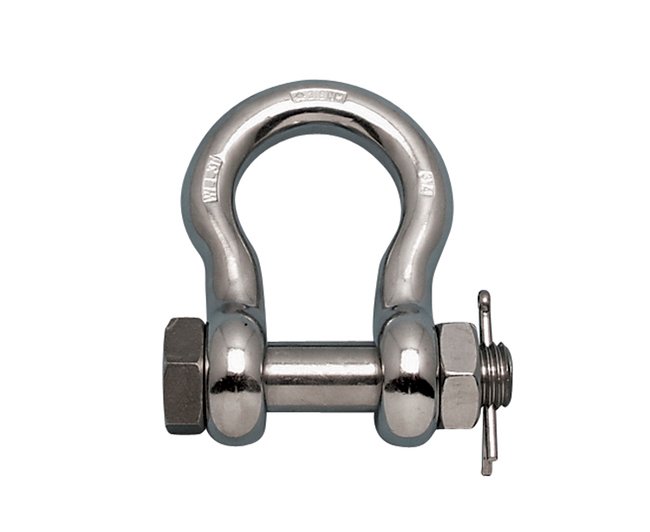

Experience unmatched durability with the Suncor US Bolt Anchor Shackle crafted from premium grade 316 stainless steel. This anchor shackle boasts an oversize bolt for superior strength, ideal for saltwater applications. Designed to securely connect anchors to chains or swivels, it upholds Federal Specification RR-C-271, Type IVA, Class 3 standards. Trust in its load rating of up to 1500 lb, making it a reliable choice for marine and industrial usage.

Product Specifications

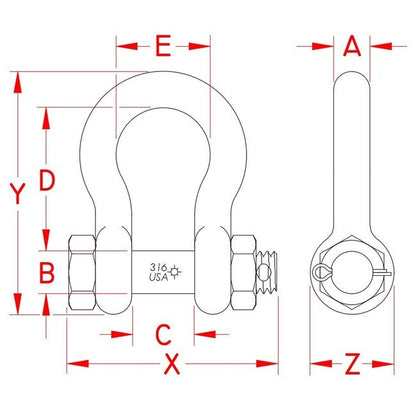

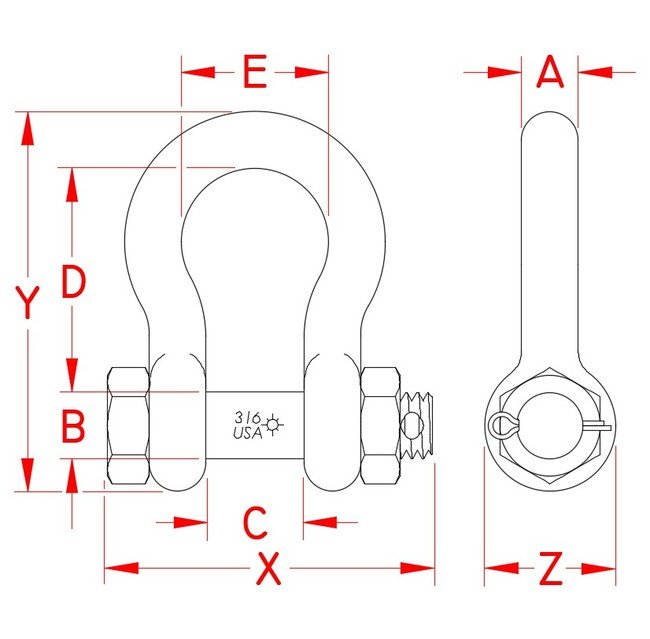

Specifications Dimension A

3/8 in

Specifications Dimension B

0.44 in

Specifications Dimension C

0.66 in

Specifications Dimension D

1.41 in

Specifications Dimension E

1.00 in

Specifications Dimension X

2.24 in

Specifications Dimension Y

2.40 in

Specifications Dimension Z

0.89 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Made in USA

Specifications Material

316-NM Stainless Steel

Specifications Specification

ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVA

Specifications Suncor Exclusive

Yes

Specifications Weight

0.32 lb

Specifications Working Load Limit Wll

1500 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
