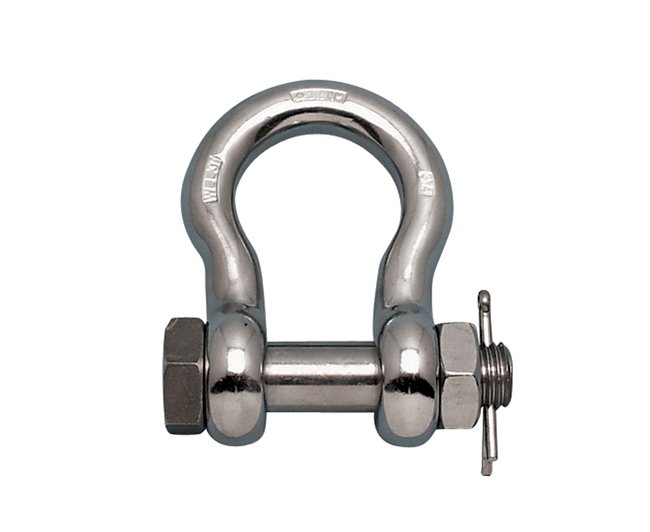

Suncor US Bolt Anchor Shackle, Grade 316 Stainless Steel, 5/8 in
Suncor US Bolt Anchor Shackle, Grade 316 Stainless Steel, 5/8 in
SKU:STA-a09d32
Premium grade 316 stainless steel US Bolt Anchor Shackle with oversized bolt for saltwater applications. Working Load Limit: 4,000 lb.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Suncor US Bolt Anchor Shackle, Grade 316 Stainless Steel, 5/8 in
$34.99
Quantity: 1
Claim Your Seller Account
Suncor US Bolt Anchor Shackle, Grade 316 Stainless Steel, 5/8 in
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Suncor US Bolt Anchor Shackle, crafted in the USA from premium grade 316 stainless steel, boasts an oversized bolt for enhanced durability in saltwater applications. Designed to securely connect anchors to chains or swivels, this shackle has a working load limit of 4,000 lb. Compliant with ASME B30.26-2010, Fed Spec RR-C-271, Type IVA standards, this drop-forged shackle is a reliable choice for marine and industrial use.

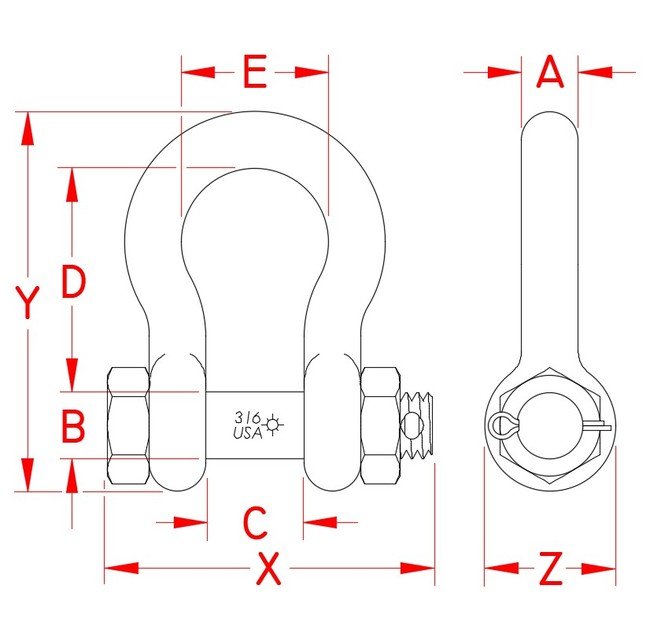

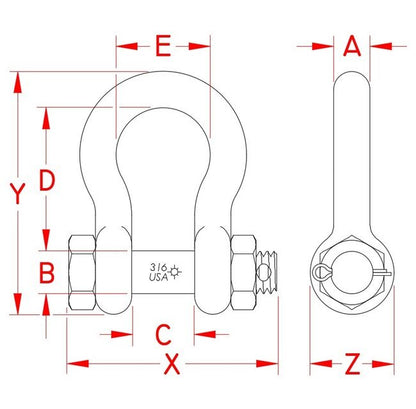

Product Specifications
Specifications Dimension A
5/8 in
Specifications Dimension B
0.75 in
Specifications Dimension C
1.02 in
Specifications Dimension D
2.41 in
Specifications Dimension E
1.60 in
Specifications Dimension X
3.67 in
Specifications Dimension Y
4.21 in
Specifications Dimension Z
1.46 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
1.45 lb
Specifications Working Load Limit Wll
4,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
