Suncor US Bolt Anchor Shackle - Stainless Steel Grade 316, USA Made

Suncor US Bolt Anchor Shackle - Stainless Steel Grade 316, USA Made

SKU:STA-c8201a

Premium Suncor US Bolt Anchor Shackle - Grade 316 Stainless Steel, Made in USA, WLL: 8,000 lb, ASME & Fed Spec Compliant

Regular price $89.99
Regular price Sale price $89.99
Sale

Initiate Order

Suncor US Bolt Anchor Shackle - Stainless Steel Grade 316, USA Made

Suncor US Bolt Anchor Shackle - Stainless Steel Grade 316, USA Made

$89.99

Quantity: 1

Claim Your Seller Account

Suncor US Bolt Anchor Shackle - Stainless Steel Grade 316, USA Made

Suncor US Bolt Anchor Shackle - Stainless Steel Grade 316, USA Made

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

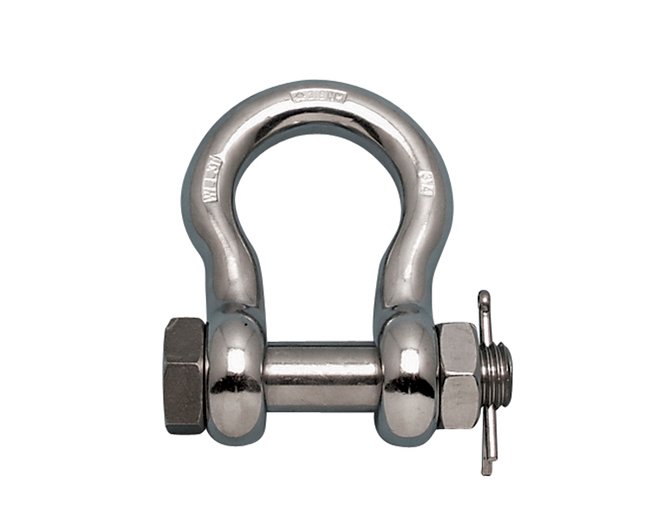

The Suncor US Bolt Anchor Shackle is expertly crafted in the USA from premium grade 316-NM stainless steel, making it exceptionally durable and corrosion-resistant, perfect for rigorous saltwater applications. This anchor shackle features an oversize bolt for secure connections, with a robust Working Load Limit (WLL) of 8,000 lb. Compliant with ASME B30.26-2010, Class 3 standards, and Federal Specification RR-C-271 Type IVA (except 316 stainless steel), ensuring reliability and safety for anchoring systems in marine and industrial settings.

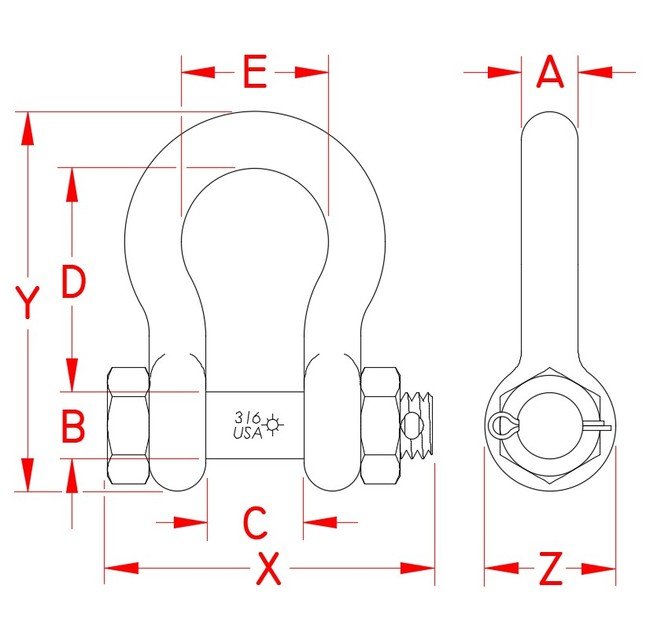

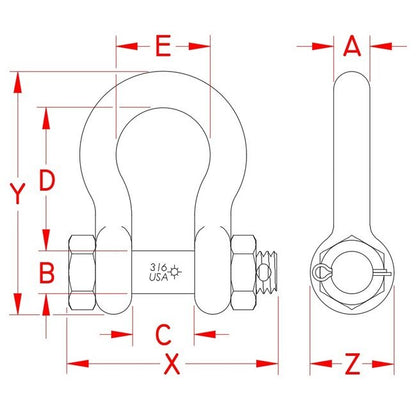

Product Specifications

Specifications Dimension A
7/8 in
Specifications Dimension B
1.00 in
Specifications Dimension C
1.48 in
Specifications Dimension D
3.30 in
Specifications Dimension E
2.20 in
Specifications Dimension X
4.85 in
Specifications Dimension Y
5.73 in
Specifications Dimension Z
1.94 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
3.66 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
