Suncor US Bolt Anchor Shackle - Stainless Steel Grade 316 with Oversize Bolt

Suncor US Bolt Anchor Shackle - Stainless Steel Grade 316 with Oversize Bolt

SKU:STA-469306

Premium Suncor US Bolt Anchor Shackle - Stainless Steel Grade 316, Oversize Bolt, 1000 lb WLL. ASME B30.26-2010, Fed. Spec. RR-C-271 Type IVA compliant.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Suncor US Bolt Anchor Shackle - Stainless Steel Grade 316 with Oversize Bolt

Suncor US Bolt Anchor Shackle - Stainless Steel Grade 316 with Oversize Bolt

$24.99

Quantity: 1

Claim Your Seller Account

Suncor US Bolt Anchor Shackle - Stainless Steel Grade 316 with Oversize Bolt

Suncor US Bolt Anchor Shackle - Stainless Steel Grade 316 with Oversize Bolt

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

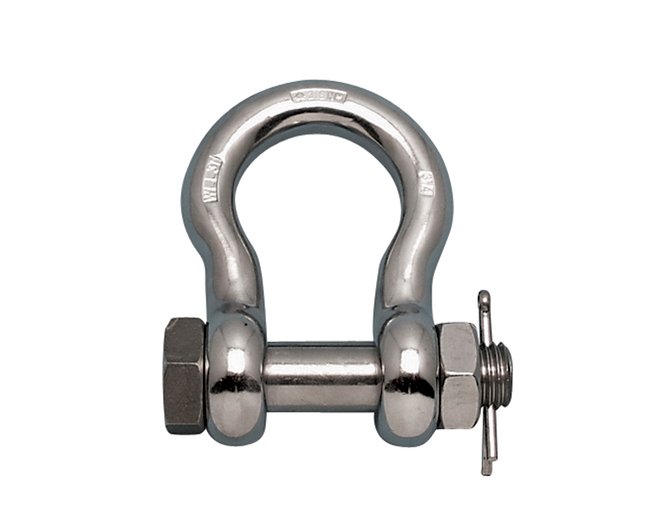

The Suncor US Bolt Anchor Shackle is expertly crafted in the USA from premium grade 316-NM stainless steel, specifically designed with an oversize bolt for superior strength and durability. Ideal for salt water applications, this stainless steel anchor shackle is essential for connecting anchors to chains or anchor swivels. With a Working Load Limit (WLL) of 1000 lb, this drop forged shackle meets ASME B30.26-2010, Class 3, and Fed. Spec. RR-C-271, Type IVA standards. Weighing just 0.116 lb, this Suncor exclusive product is synonymous with quality and reliability.

Product Specifications

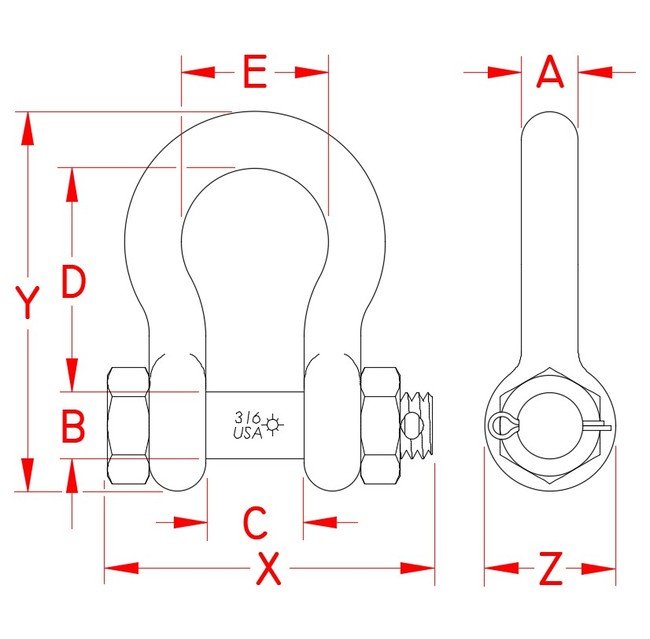

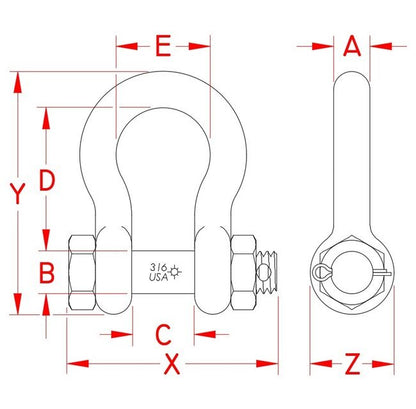

Specifications Dimension A
1/4 in
Specifications Dimension B
0.31 in
Specifications Dimension C
0.47 in
Specifications Dimension D
1.11 in
Specifications Dimension E
0.75 in
Specifications Dimension X
1.66 in
Specifications Dimension Y
1.79 in
Specifications Dimension Z
0.61 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
0.116 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
