Suncor US Bolt Chain Shackle - 316 Stainless Steel, ASME B30.26-2010 Compliant

Suncor US Bolt Chain Shackle - 316 Stainless Steel, ASME B30.26-2010 Compliant

SKU:STA-fd4031

Premium Suncor US Bolt Chain Shackle - 316 Stainless Steel. ASME B30.26-2010 Compliant. Ideal for industrial/marine use.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Suncor US Bolt Chain Shackle - 316 Stainless Steel, ASME B30.26-2010 Compliant

Suncor US Bolt Chain Shackle - 316 Stainless Steel, ASME B30.26-2010 Compliant

$29.99

Quantity: 1

Claim Your Seller Account

Suncor US Bolt Chain Shackle - 316 Stainless Steel, ASME B30.26-2010 Compliant

Suncor US Bolt Chain Shackle - 316 Stainless Steel, ASME B30.26-2010 Compliant

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

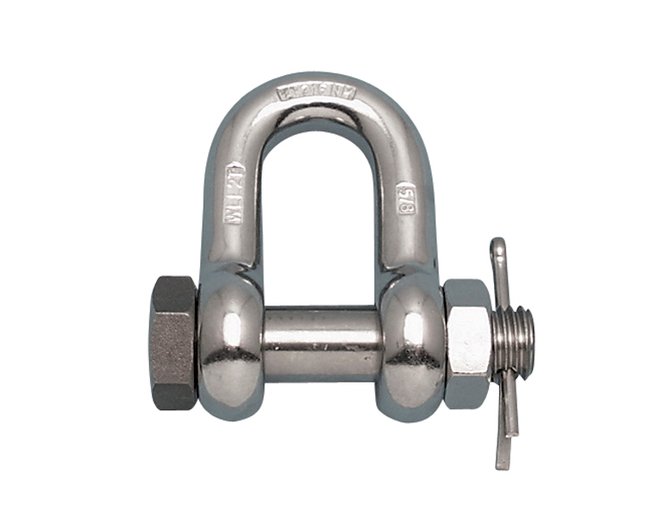

The Suncor US Bolt Chain Shackle is expertly crafted in the USA from premium grade 316-NM stainless steel, ensuring superior durability and maximum corrosion resistance for industrial and marine applications. Featuring an oversized bolt for added safety, this shackle is load-rated up to 3000 lbs, meeting ASME B30.26-2010, Fed Spec RR-C-271 Type IVB Class 3 standards. Precision drop forged and marked to the nearest fractional ton, this Suncor exclusive shackle guarantees unmatched quality and reliability.

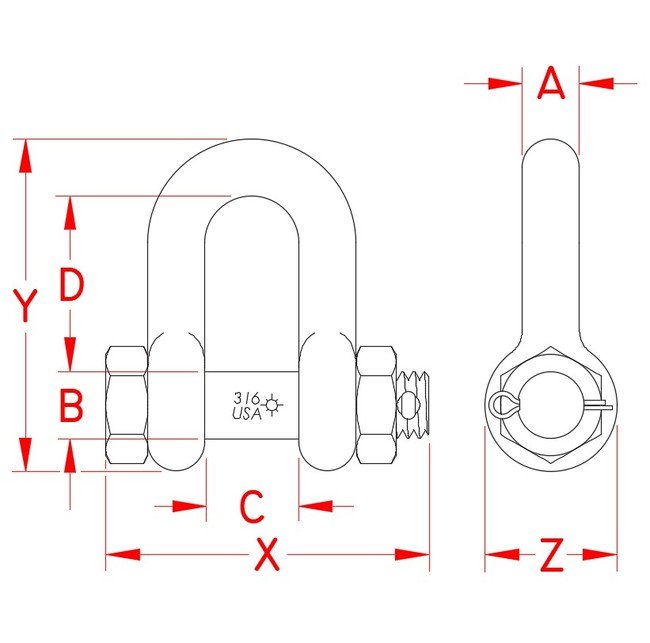

Product Specifications

Specifications Dimension A
1/2 in
Specifications Dimension B
0.63 in
Specifications Dimension C
0.79 in
Specifications Dimension D
1.58 in
Specifications Dimension X
2.87 in
Specifications Dimension Y
2.93 in
Specifications Dimension Z
1.18 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
0.72 lb
Specifications Working Load Limit Wll
3000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
