Suncor US Bolt Chain Shackle - Grade 316 Stainless Steel

Suncor US Bolt Chain Shackle - Grade 316 Stainless Steel

SKU:STA-76b345

Premium Suncor US Bolt Chain Shackle - Grade 316 Stainless Steel, USA-made for superior strength and corrosion resistance in industrial and marine applications.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Suncor US Bolt Chain Shackle - Grade 316 Stainless Steel

Suncor US Bolt Chain Shackle - Grade 316 Stainless Steel

$29.99

Quantity: 1

Claim Your Seller Account

Suncor US Bolt Chain Shackle - Grade 316 Stainless Steel

Suncor US Bolt Chain Shackle - Grade 316 Stainless Steel

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

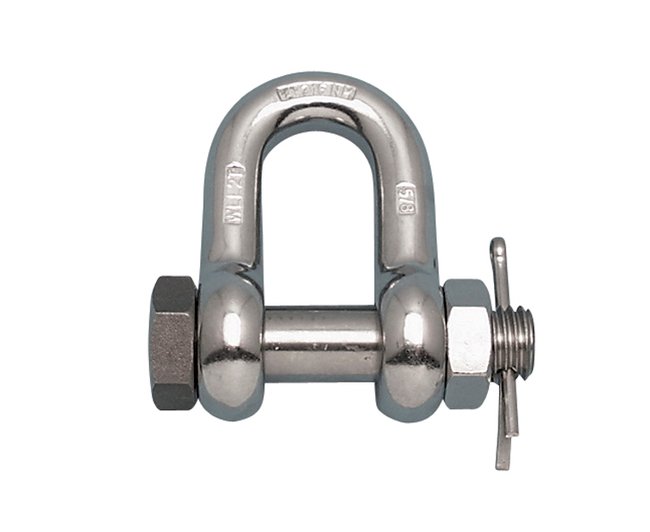

The Suncor US Bolt Chain Shackle, proudly made in the USA, is forged from high-quality 316-NM stainless steel, offering exceptional durability and superior corrosion resistance. Featuring an oversized bolt for added strength, this shackle is designed for industrial and marine applications. With a working load limit of 1500 lb, this Suncor exclusive product complies with ASME B30.26-2010, Class 3 standards, and Fed Spec RR-C-271, Type IVB, ensuring top-notch performance in diverse settings. Marked to the nearest fractional ton for accuracy and peace of mind.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

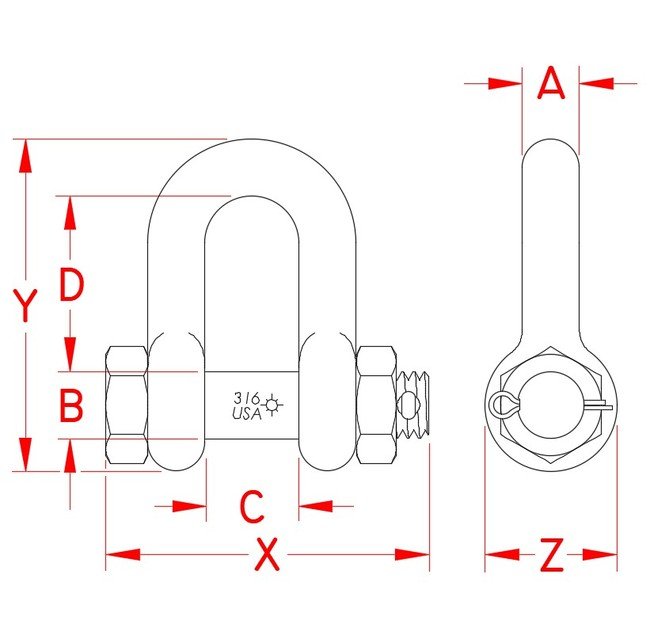

Product Specifications

Specifications Dimension A
3/8 in
Specifications Dimension B
0.44 in
Specifications Dimension C
0.65 in
Specifications Dimension D
1.24 in
Specifications Dimension X
2.28 in
Specifications Dimension Y
2.24 in
Specifications Dimension Z
0.90 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
0.3 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
