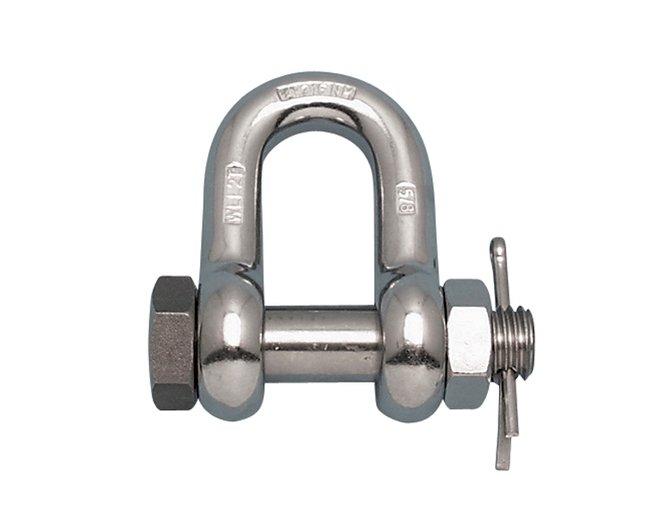

Suncor US Bolt Chain Shackle - Grade 316 Stainless Steel

Name: Suncor US Bolt Chain Shackle - Grade 316 Stainless Steel
Brand: Suncor Stainless, Inc.
SKU: STA-62719f
Price: 59.99 USD
Availability: OutOfStock

SKU:STA-62719f

Premium Suncor US Bolt Chain Shackle - Grade 316 Stainless Steel, 10,000 lb WLL, USA-made, ASME B30.26 & Fed Spec RR-C-271 compliant

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Suncor US Bolt Chain Shackle, crafted from 316-NM stainless steel, is expertly forged in the USA with an oversized bolt to ensure maximum strength and durability. With a working load limit of 10,000 lb, this shackle is ideal for demanding industrial and marine applications. Compliant with ASME B30.26-2010, Fed Spec RR-C-271 Type IVB, and Class 3 standards, it guarantees top-notch quality and performance. Trust Suncor's exclusive design for reliable safety and corrosion resistance.

Product Specifications

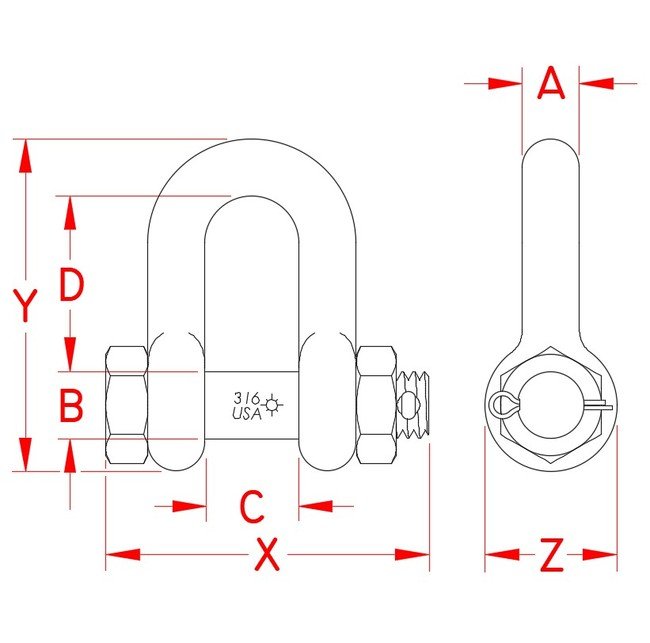

Specifications Dimension A

1 in

Specifications Dimension B

1.13 in

Specifications Dimension C

1.67 in

Specifications Dimension D

3.20 in

Specifications Dimension X

5.18 in

Specifications Dimension Y

5.85 in

Specifications Dimension Z

2.19 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Made in USA

Specifications Material

316-NM Stainless Steel

Specifications Specification

ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVB

Specifications Suncor Exclusive

Yes

Specifications Weight

4.69 lb

Specifications Working Load Limit Wll

10,000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030

Suncor US Bolt Chain Shackle - Grade 316 Stainless Steel
