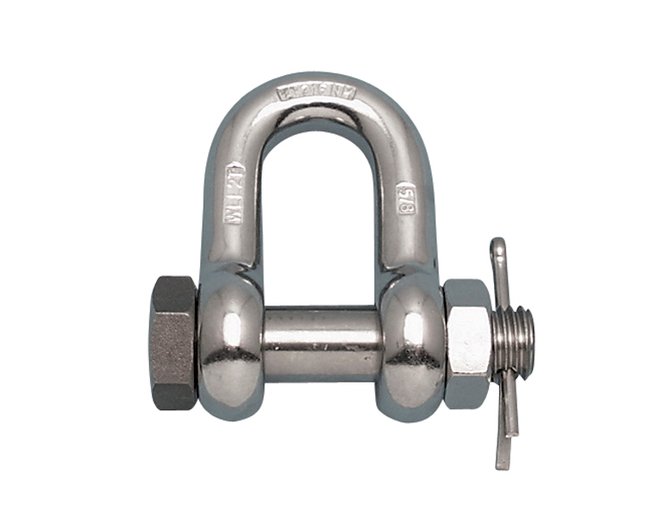

Suncor US Bolt Chain Shackle, Grade 316 Stainless Steel, 1,300 lb WLL

Name: Suncor US Bolt Chain Shackle, Grade 316 Stainless Steel, 1,300 lb WLL
Brand: Suncor Stainless, Inc.
SKU: STA-ba2dc8
Price: 34.99 USD
Availability: OutOfStock

SKU:STA-ba2dc8

Premium Suncor US Bolt Chain Shackle, Grade 316 Stainless Steel, Ideal for Industrial & Marine Applications

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Suncor US Bolt Chain Shackle, crafted in the USA from premium grade 316-NM stainless steel, boasts exceptional corrosion resistance. Featuring an oversize bolt for enhanced security, this shackle is meticulously designed for industrial and marine applications. Compliant with ASME B30.26-2010, Class 3, Fed Spec RR-C-271, Type IVB standards, ensuring top-tier quality and safety in every use. Available in various sizes to accommodate diverse needs.

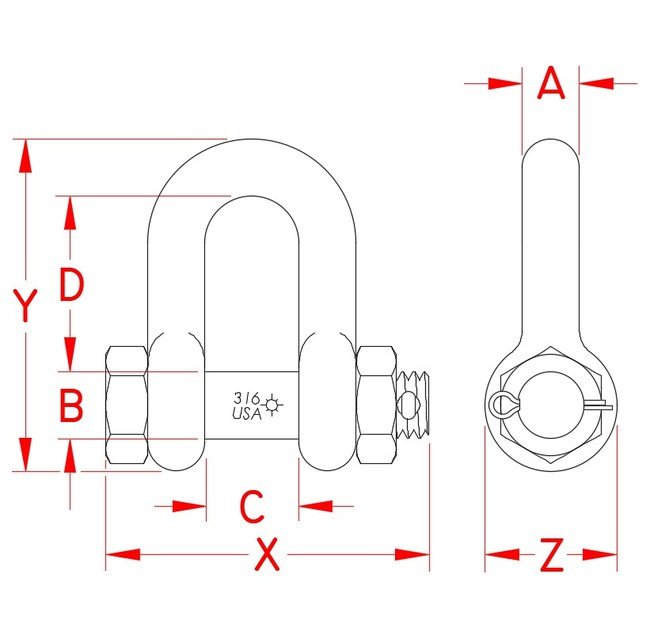

Product Specifications

Specifications Dimension A

5/16 in

Specifications Dimension B

0.38 in

Specifications Dimension C

0.52 in

Specifications Dimension D

1.02 in

Specifications Dimension X

1.80 in

Specifications Dimension Y

1.85 in

Specifications Dimension Z

0.72 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Made in USA

Specifications Material

316-NM Stainless Steel

Specifications Specification

ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVB

Specifications Suncor Exclusive

Yes

Specifications Weight

0.16 lb

Specifications Working Load Limit Wll

1,300 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
