Suncor US Bolt Chain Shackle, Grade 316 Stainless Steel

Name: Suncor US Bolt Chain Shackle, Grade 316 Stainless Steel
Brand: Suncor Stainless, Inc.
SKU: STA-876644
Price: 89.99 USD
Availability: OutOfStock

SKU:STA-876644

High-quality Suncor US Bolt Chain Shackle for industrial & marine use. Grade 316 stainless steel, ASME & Fed. Spec. compliant.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

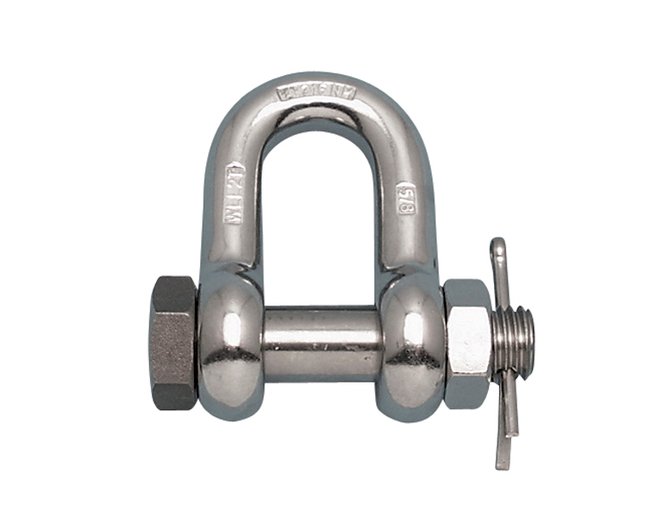

The Suncor US Bolt Chain Shackle, crafted in the USA from 316-NM stainless steel, boasts exceptional corrosion resistance. Engineered for industrial and marine use, this shackle features an oversized bolt and meets ASME B30.26-2010, Class 3, Fed. Spec. RR-C-271, Type IVB standards. With a Working Load Limit of 8,000 lb, this drop-forged shackle ensures reliability in demanding applications.

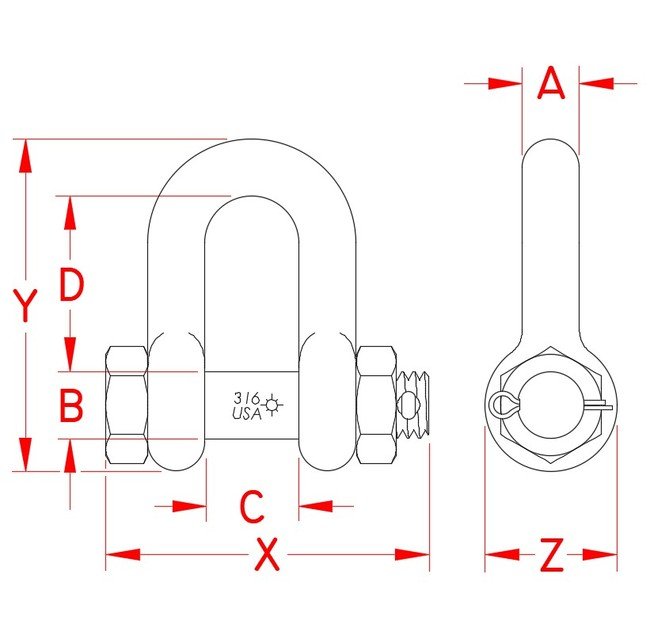

Product Specifications

Specifications Dimension A

7/8 in

Specifications Dimension B

1.01 in

Specifications Dimension C

1.45 in

Specifications Dimension D

2.88 in

Specifications Dimension X

4.84 in

Specifications Dimension Y

5.25 in

Specifications Dimension Z

1.94 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Made in USA

Specifications Material

316-NM Stainless Steel

Specifications Specification

ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVB

Specifications Suncor Exclusive

Yes

Specifications Weight

3.41 lb

Specifications Working Load Limit Wll

8,000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030

Suncor US Bolt Chain Shackle, Grade 316 Stainless Steel
