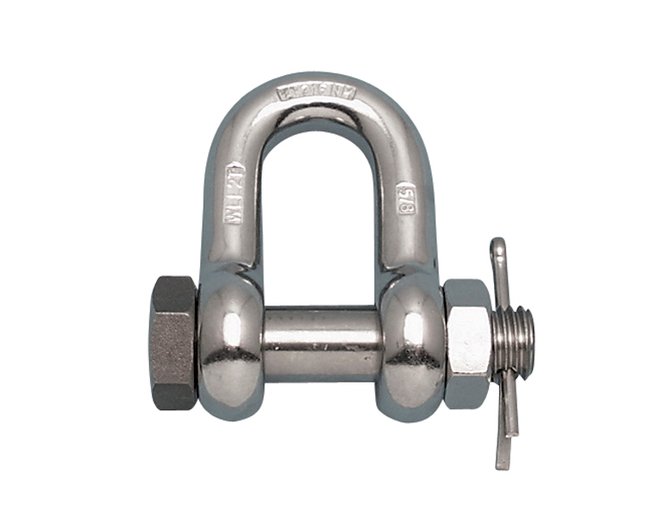

Suncor US Bolt Chain Shackle - Grade 316 Stainless Steel

Name: Suncor US Bolt Chain Shackle - Grade 316 Stainless Steel
Brand: Suncor Stainless, Inc.
SKU: STA-667b48
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-667b48

Premium Suncor US Bolt Chain Shackle - Grade 316 Stainless Steel, ASME B30.26-2010, Class 3 compliant, ideal for industrial and marine use.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Suncor US Bolt Chain Shackle is a premium-grade product made in the USA from 316-NM stainless steel, providing exceptional corrosion resistance. Featuring oversized bolt dimensions and meeting ASME B30.26-2010, Class 3 specifications, this shackle is designed for industrial and marine applications. With a Working Load Limit of 1000 lb and compliant with Fed Spec RR-C-271 Type IVB, this shackle ensures reliable and secure lifting operations in demanding environments.

Product Specifications

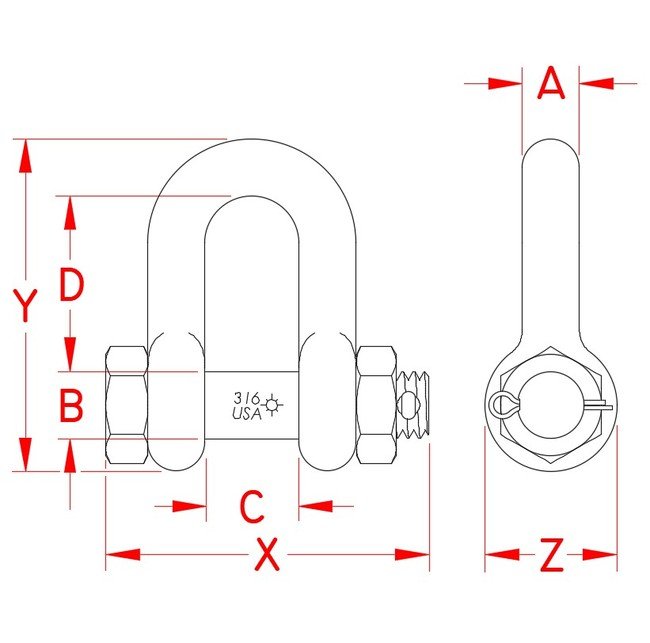

Specifications Dimension A

1/4 in

Specifications Dimension B

0.31 in

Specifications Dimension C

0.46 in

Specifications Dimension D

0.87 in

Specifications Dimension X

1.59 in

Specifications Dimension Y

1.55 in

Specifications Dimension Z

0.61 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Made in USA

Specifications Material

316-NM Stainless Steel

Specifications Specification

ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVB

Specifications Suncor Exclusive

Yes

Specifications Weight

0.1 lb

Specifications Working Load Limit Wll

1000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
