Suncor US Bolt Chain Shackle, Grade 316 Stainless Steel, WLL 6,000 lb

Name: Suncor US Bolt Chain Shackle, Grade 316 Stainless Steel, WLL 6,000 lb
Brand: Suncor Stainless, Inc.
SKU: STA-f4b2bb
Price: 47.99 USD
Availability: OutOfStock

SKU:STA-f4b2bb

Premium Suncor US Bolt Chain Shackle for industrial and marine use. Grade 316 stainless steel, WLL 6,000 lb, USA-made.

$47.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

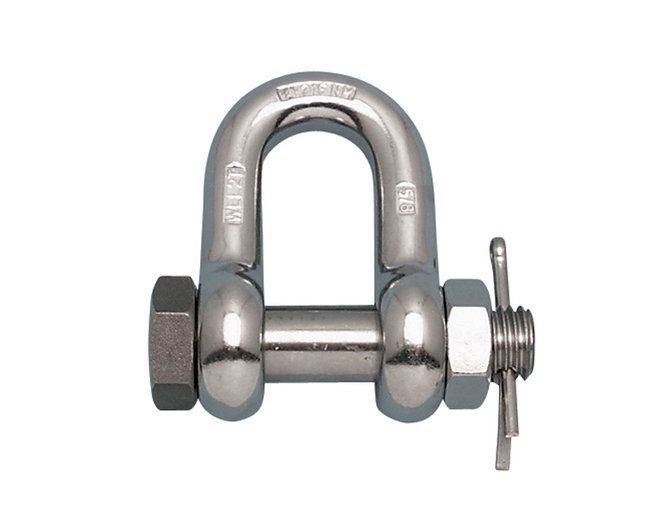

The Suncor US Bolt Chain Shackle is crafted in the USA from premium 316-NM stainless steel, offering exceptional durability and corrosion resistance. Designed with an oversize bolt for enhanced safety, this drop-forged shackle meets ASME B30.26-2010, Fed Spec RR-C-271 Type IVB standards. With a Working Load Limit of 6,000 lb, it is ideal for industrial and marine applications.

Product Specifications

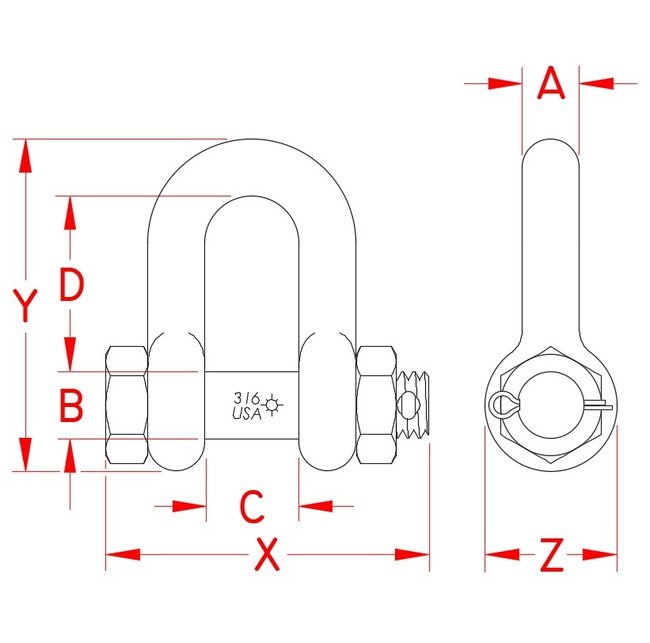

Specifications Dimension A

3/4 in

Specifications Dimension B

0.88 in

Specifications Dimension C

1.20 in

Specifications Dimension D

2.40 in

Specifications Dimension X

4.18 in

Specifications Dimension Y

4.40 in

Specifications Dimension Z

1.72 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Made in USA

Specifications Material

316-NM Stainless Steel

Specifications Specification

ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVB

Specifications Suncor Exclusive

Yes

Specifications Weight

2.2 lb

Specifications Working Load Limit Wll

6,000 lb
