Suncor US Round Pin Anchor Shackle - Grade 316 Stainless Steel

Suncor US Round Pin Anchor Shackle - Grade 316 Stainless Steel

SKU:STA-0b72a4

Secure your anchor with the Suncor grade 316 stainless steel Round Pin Anchor Shackle for ultimate durability and compliance with Fed Spec RR-C-271 standards.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Suncor US Round Pin Anchor Shackle - Grade 316 Stainless Steel

Suncor US Round Pin Anchor Shackle - Grade 316 Stainless Steel

$49.99

Quantity: 1

Claim Your Seller Account

Suncor US Round Pin Anchor Shackle - Grade 316 Stainless Steel

Suncor US Round Pin Anchor Shackle - Grade 316 Stainless Steel

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Elevate your anchoring system with the Suncor US Round Pin Anchor Shackle. Crafted in the USA from premium grade 316 stainless steel, this shackle features an oversized round pin for secure connections. With a generous working load limit of 8,000 lb, this stainless steel shackle is perfect for saltwater applications, ensuring durability and reliability. Compliant with Fed Spec RR-C-271, Type IVA, Class 1 standards (excluding 316 stainless steel), it meets the rigorous requirements for industrial and maritime use.

Product Specifications

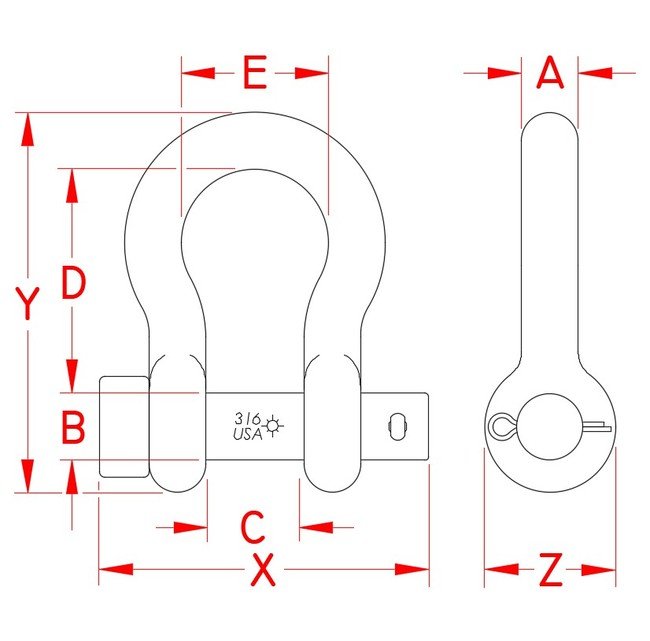

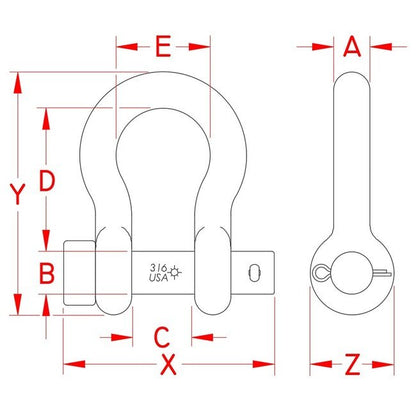

Specifications Dimension A
7/8 in
Specifications Dimension B
1.00 in
Specifications Dimension C
1.48 in
Specifications Dimension D
3.30 in
Specifications Dimension E
2.20 in
Specifications Dimension X
4.32 in
Specifications Dimension Y
5.62 in
Specifications Dimension Z
1.92 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
Class 1 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
3.26 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
