Suncor US Round Pin Anchor Shackle, Grade 316 Stainless Steel

Suncor US Round Pin Anchor Shackle, Grade 316 Stainless Steel

SKU:STA-3fd8f1

Premium Suncor US Round Pin Anchor Shackle: Grade 316 stainless steel, ideal for marine applications, meets Fed Spec RR-C-271 standards.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Suncor US Round Pin Anchor Shackle, Grade 316 Stainless Steel

Suncor US Round Pin Anchor Shackle, Grade 316 Stainless Steel

$29.99

Quantity: 1

Claim Your Seller Account

Suncor US Round Pin Anchor Shackle, Grade 316 Stainless Steel

Suncor US Round Pin Anchor Shackle, Grade 316 Stainless Steel

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

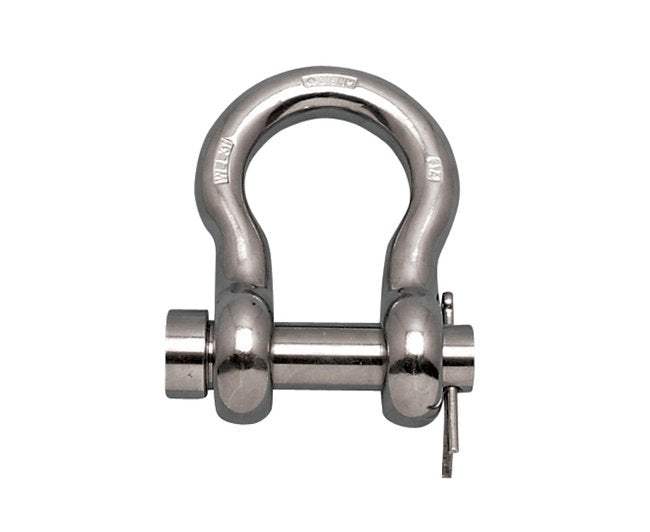

The Suncor US Round Pin Anchor Shackle is expertly crafted in the USA from premium grade 316 stainless steel, ensuring exceptional durability and corrosion resistance for saltwater applications. This Anchor Shackle with an oversize round pin is ideal for securely connecting anchors to chains or anchor swivels. Compliant with Fed Spec RR-C-271, Type IVA, Class 1 standards (excluding 316 stainless steel), this shackle offers a working load limit of 1,300 lb. Trust in Suncor's drop-forged fabrication and the assurance of load rating, making it a reliable choice for marine and industrial uses.

Product Specifications

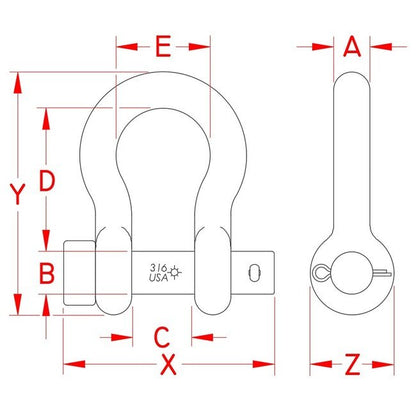

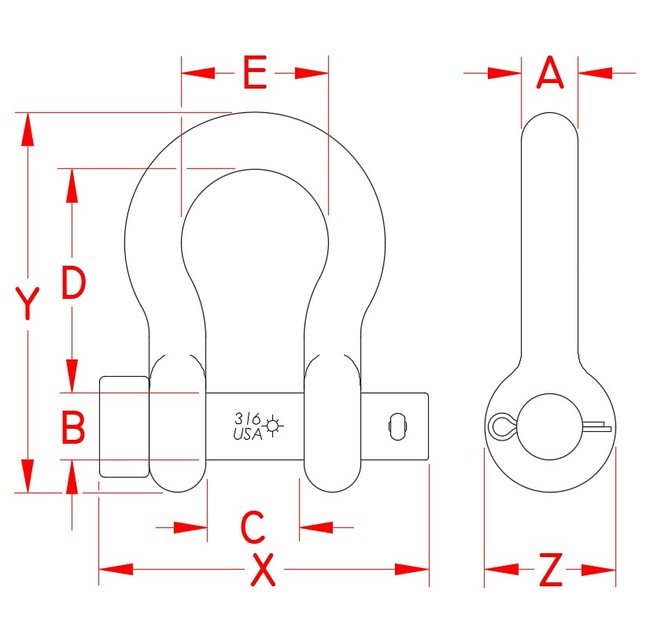

Specifications Dimension A
5/16 in
Specifications Dimension B
0.38 in
Specifications Dimension C
0.53 in
Specifications Dimension D
1.20 in
Specifications Dimension E
0.80 in
Specifications Dimension X
1.78 in
Specifications Dimension Y
2.03 in
Specifications Dimension Z
0.74 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
Class 1 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
0.17 lb
Specifications Working Load Limit Wll
1,300 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
