Suncor US Round Pin Anchor Shackle - Grade 316 Stainless Steel

Suncor US Round Pin Anchor Shackle - Grade 316 Stainless Steel

SKU:STA-8617f8

Premium US-made stainless steel shackle with oversized pin for secure marine anchor connections. ASTM-compliant. WLL: 1000 lb.

Regular price $14.99
Regular price Sale price $14.99
Sale

Initiate Order

Suncor US Round Pin Anchor Shackle - Grade 316 Stainless Steel

Suncor US Round Pin Anchor Shackle - Grade 316 Stainless Steel

$14.99

Quantity: 1

Claim Your Seller Account

Suncor US Round Pin Anchor Shackle - Grade 316 Stainless Steel

Suncor US Round Pin Anchor Shackle - Grade 316 Stainless Steel

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

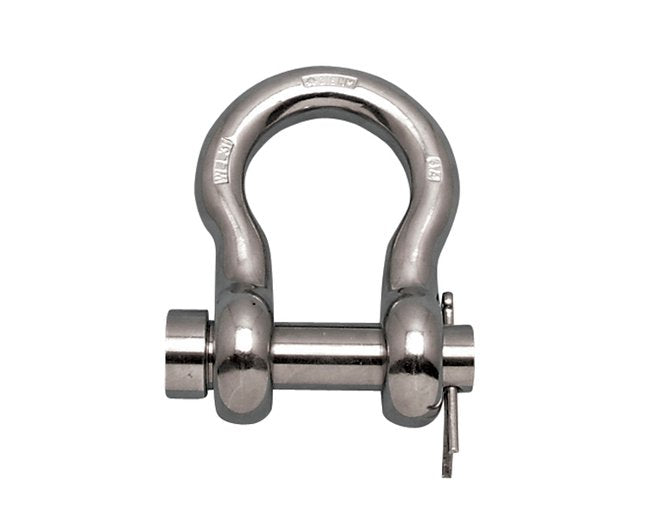

Crafted in the USA, the Suncor US Round Pin Anchor Shackle is a durable marine-grade shackle designed for saltwater applications. This stainless steel shackle features an oversize round pin, perfect for connecting anchors securely to chains or swivels. With a Working Load Limit of 1000 lb, this shackle is drop forged from 316-NM stainless steel, meeting Class 1 specifications I/A/W Fed Spec RR-C-271, Type IVA. Trust Suncor's exclusive design for reliable performance in demanding maritime environments.

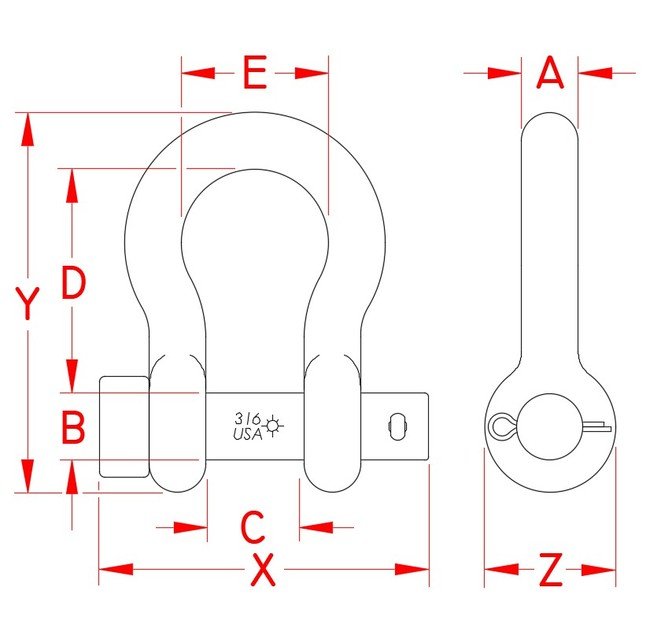

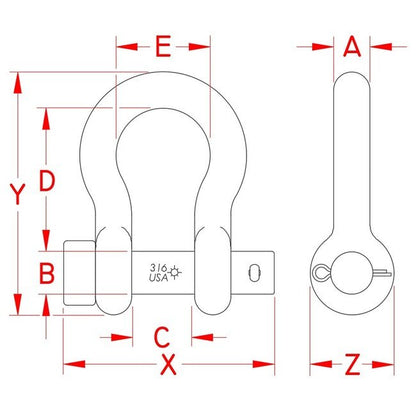

Product Specifications

Specifications Dimension A
1/4 in
Specifications Dimension B
0.31 in
Specifications Dimension C
0.47 in
Specifications Dimension D
1.11 in
Specifications Dimension E
0.75 in
Specifications Dimension X
1.50 in
Specifications Dimension Y
1.79 in
Specifications Dimension Z
0.60 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
Class 1 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
0.1 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
