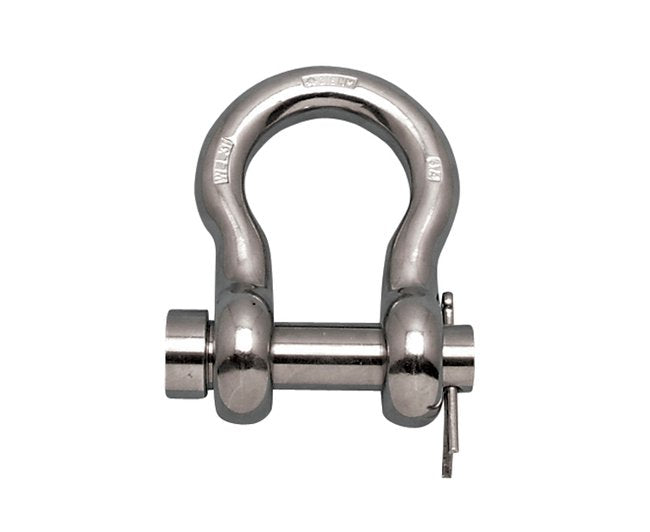

Suncor US Round Pin Anchor Shackle, Stainless Steel, 6,000 lb WLL

Name: Suncor US Round Pin Anchor Shackle, Stainless Steel, 6,000 lb WLL
Brand: Suncor Stainless, Inc.
SKU: STA-d90b68
Price: 39.99 USD
Availability: OutOfStock

SKU:STA-d90b68

Premium Suncor US Round Pin Anchor Shackle, Stainless Steel, 6,000 lb WLL for secure marine connections.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Suncor US Round Pin Anchor Shackle is expertly crafted in the USA from premium 316-NM stainless steel with a robust oversize round pin design. Specifically engineered for saltwater environments, this shackle is perfect for securely connecting anchors to chains or swivels. With a 6,000 lb Working Load Limit (WLL), it ensures reliable performance in demanding marine applications. Compliant with Federal Spec RR-C-271, Type IVA, Class 1 standards.

Product Specifications

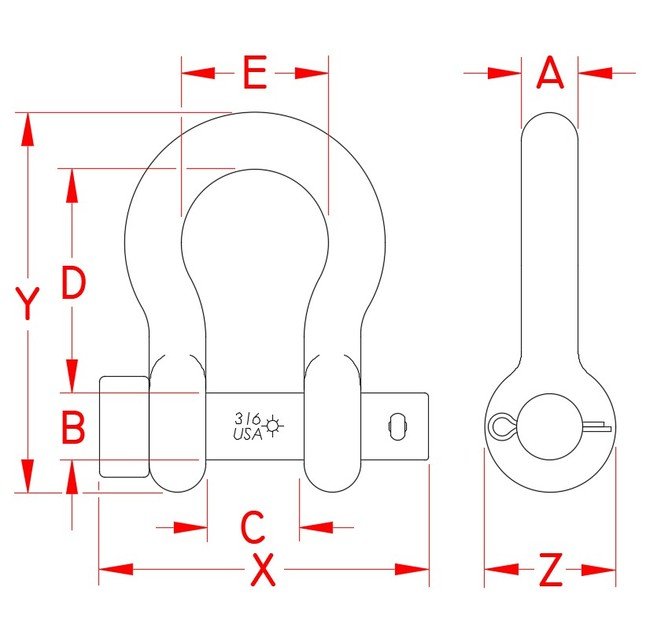

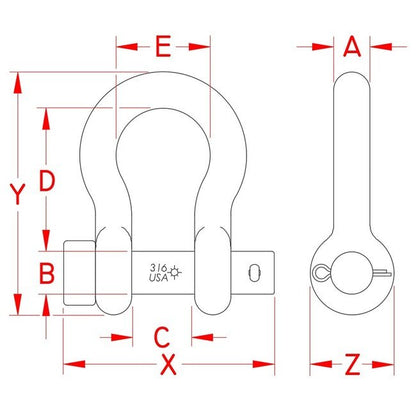

Specifications Dimension A

3/4 in

Specifications Dimension B

0.88 in

Specifications Dimension C

1.25 in

Specifications Dimension D

2.84 in

Specifications Dimension E

1.90 in

Specifications Dimension X

3.72 in

Specifications Dimension Y

4.87 in

Specifications Dimension Z

1.74 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Made in USA

Specifications Material

316-NM Stainless Steel

Specifications Specification

Class 1 | Fed. Spec. RR-C-271 | Type IVA

Specifications Suncor Exclusive

Yes

Specifications Weight

2.15 lb

Specifications Working Load Limit Wll

6,000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
