Suncor US Round Pin Chain Shackle - 316 Stainless Steel

Suncor US Round Pin Chain Shackle - 316 Stainless Steel

SKU:STA-ba9c1d

Premium Suncor US Round Pin Chain Shackle - Grade 316 Stainless Steel for industrial & marine use. Compliant with Fed Spec RR-C-271 Type IVB. Made in USA.

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

Suncor US Round Pin Chain Shackle - 316 Stainless Steel

Suncor US Round Pin Chain Shackle - 316 Stainless Steel

$79.99

Quantity: 1

Claim Your Seller Account

Suncor US Round Pin Chain Shackle - 316 Stainless Steel

Suncor US Round Pin Chain Shackle - 316 Stainless Steel

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

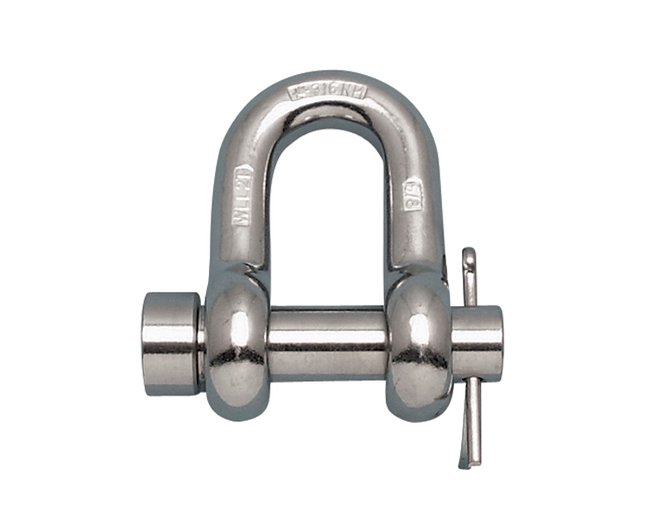

The Suncor US Round Pin Chain Shackle is crafted from grade 316-NM stainless steel, ensuring exceptional corrosion resistance for demanding industrial and marine environments. Featuring a robust oversize round pin and a working load limit of 10,000 lb, this drop-forged shackle guarantees superior strength and reliability. Compliant with Class 1 of Fed Spec RR-C-271 Type IVB, this Made in USA product assures quality and performance for your critical applications.

Product Specifications

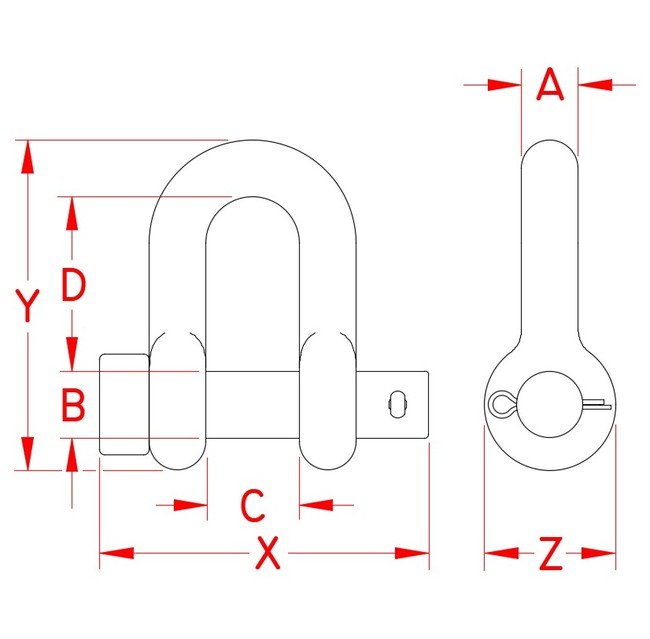

Specifications Dimension A
1 in
Specifications Dimension B
1.13 in
Specifications Dimension C
1.67 in
Specifications Dimension D
3.20 in
Specifications Dimension X
4.98 in
Specifications Dimension Y
5.87 in
Specifications Dimension Z
2.15 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
Class 1 | Fed. Spec. RR-C-271 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
4.41 lb
Specifications Working Load Limit Wll
10,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
