Suncor US Round Pin Chain Shackle - 316 Stainless Steel

Name: Suncor US Round Pin Chain Shackle - 316 Stainless Steel
Brand: Suncor Stainless, Inc.
SKU: STA-fc51ec
Price: 24.99 USD
Availability: OutOfStock

SKU:STA-fc51ec

Premium stainless steel chain shackle for heavy-duty industrial and marine applications. Compliant with Fed Spec RR-C-271.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

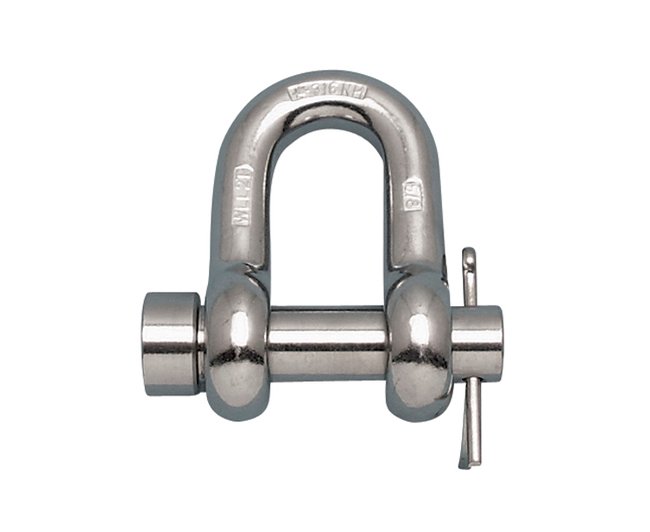

Enhance your industrial and marine operations with the Suncor US Round Pin Chain Shackle. Crafted from grade 316-NM stainless steel with a drop forged design, this shackle offers exceptional corrosion resistance and durability. With a working load limit of 1500 lb, it is ideal for heavy-duty applications. Compliant with Fed Spec RR-C-271, Type IVB, Class 1 standards, this American-made shackle ensures reliability and safety in every use.

Product Specifications

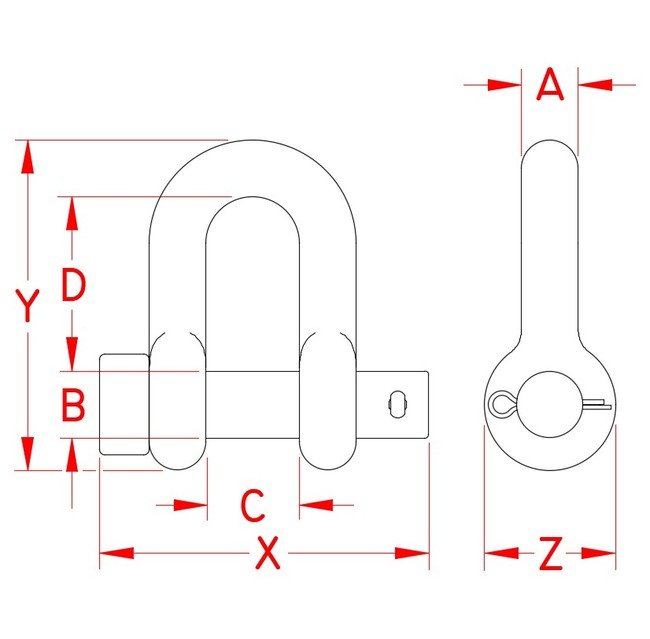

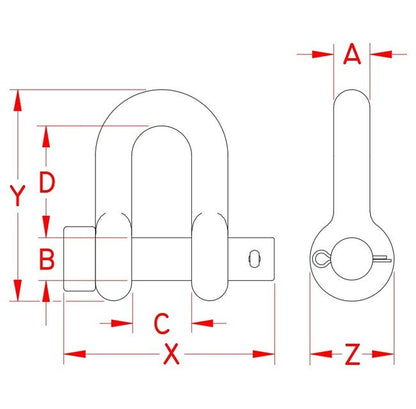

Specifications Dimension A

3/8 in

Specifications Dimension B

0.44 in

Specifications Dimension C

0.65 in

Specifications Dimension D

1.24 in

Specifications Dimension X

2.01 in

Specifications Dimension Y

2.24 in

Specifications Dimension Z

0.88 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Made in USA

Specifications Material

316-NM Stainless Steel

Specifications Specification

Class 1 | Fed. Spec. RR-C-271 | Type IVB

Specifications Suncor Exclusive

Yes

Specifications Weight

0.27 lb

Specifications Working Load Limit Wll

1500 lb

CAGE

1CXX6

NAICS

332999

PSC

4030

Suncor US Round Pin Chain Shackle - 316 Stainless Steel
