Suncor US Round Pin Chain Shackle - 316 Stainless Steel, Made in USA

Name: Suncor US Round Pin Chain Shackle - 316 Stainless Steel, Made in USA
Brand: Suncor Stainless, Inc.
SKU: STA-3c2dd6
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-3c2dd6

Premium Suncor US Round Pin Chain Shackle, 316 Stainless Steel, Made in USA. Complies with Fed Spec RR-C-271, Type IVB, Class 1.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

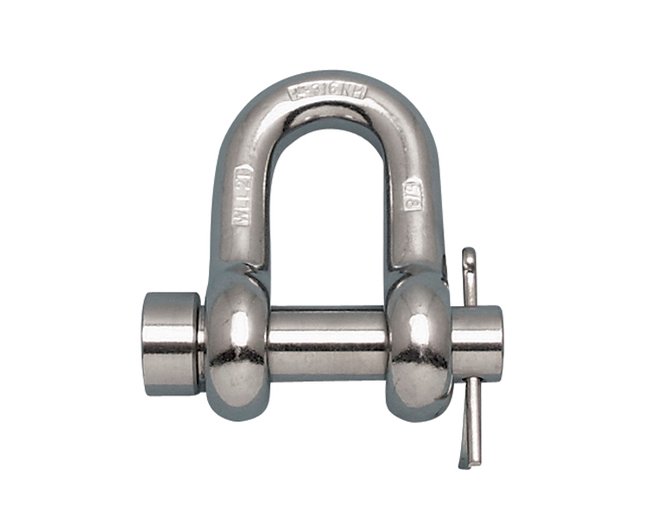

Upgrade your industrial and marine applications with the Suncor US Round Pin Chain Shackle in grade 316 stainless steel, ensuring maximum corrosion resistance. This chain shackle features an oversize round pin for secure connections and is drop-forged for durability. With a working load limit of 2000 lb, this Suncor exclusive product complies I/A/W Fed Spec RR-C-271, Type IVB, Class 1 standards.

Product Specifications

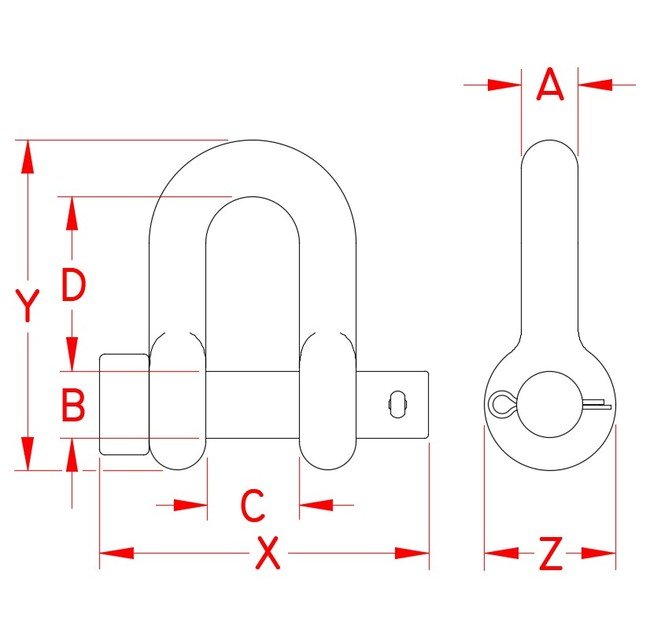

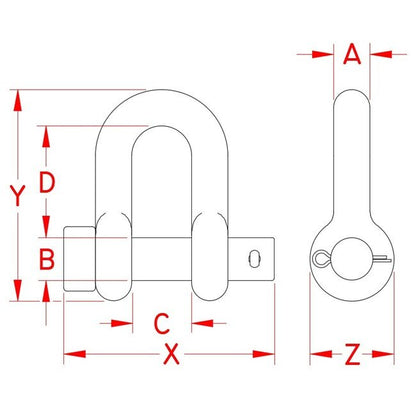

Specifications Dimension A

7/16 in

Specifications Dimension B

0.50 in

Specifications Dimension C

0.75 in

Specifications Dimension D

1.43 in

Specifications Dimension X

2.39 in

Specifications Dimension Y

2.60 in

Specifications Dimension Z

1.01 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Made in USA

Specifications Material

316-NM Stainless Steel

Specifications Specification

Class 1 | Fed. Spec. RR-C-271 | Type IVB

Specifications Suncor Exclusive

Yes

Specifications Weight

0.42 lb

Specifications Working Load Limit Wll

2000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
