Suncor US Round Pin Chain Shackle - Stainless Steel Grade 316-NM
Suncor US Round Pin Chain Shackle - Stainless Steel Grade 316-NM
SKU:STA-39e9f6
Premium grade 316-NM stainless steel chain shackle with 3000 lb Working Load Limit & Class 1 compliance for industrial and marine use.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Suncor US Round Pin Chain Shackle - Stainless Steel Grade 316-NM
$49.99
Quantity: 1
Claim Your Seller Account
Suncor US Round Pin Chain Shackle - Stainless Steel Grade 316-NM
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

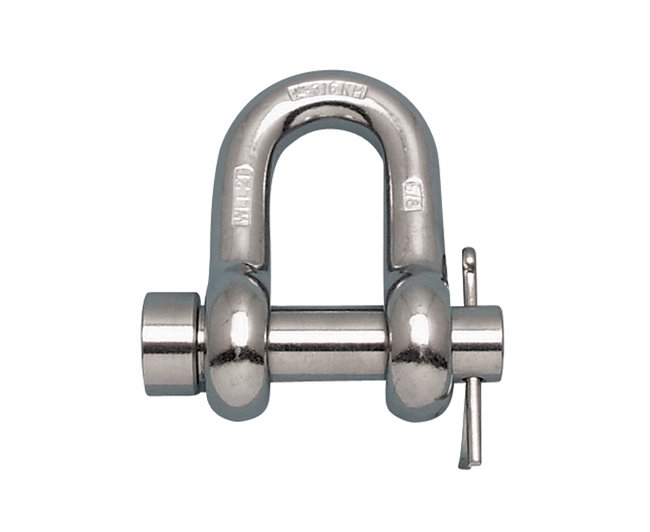

Enhance your industrial and marine operations with the Suncor US Round Pin Chain Shackle. Crafted from premium grade 316-NM stainless steel with an oversized round pin, this shackle offers unmatched corrosion resistance and durability. With a Working Load Limit (WLL) of 3000 lb, this drop-forged shackle meets Class 1 specifications I/A/W Fed Spec RR-C-271, Type IVB, making it an essential choice for reliable performance in varied settings.
Product Specifications

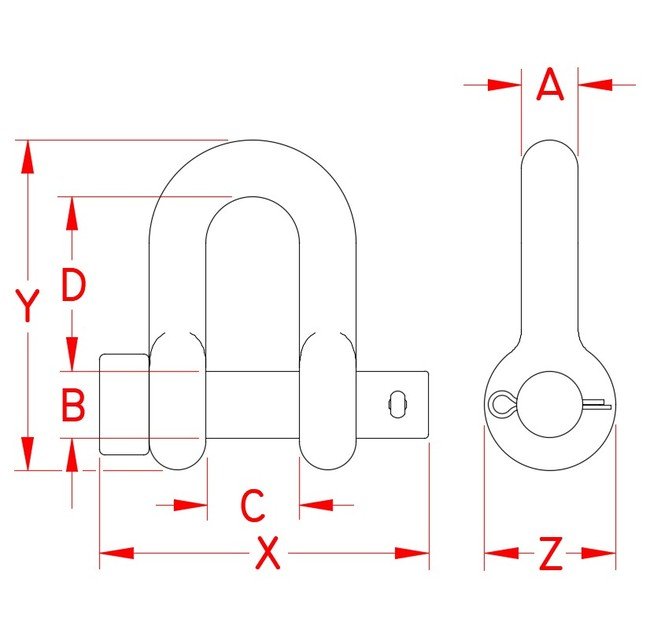

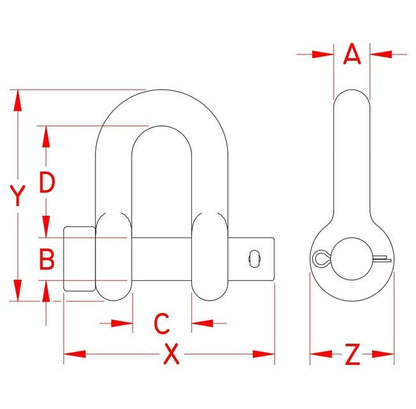

Specifications Dimension A
1/2 in
Specifications Dimension B
0.63 in
Specifications Dimension C
0.79 in
Specifications Dimension D
1.58 in
Specifications Dimension X
2.64 in
Specifications Dimension Y
2.92 in
Specifications Dimension Z
1.18 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
Class 1 | Fed. Spec. RR-C-271 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
0.64 lb
Specifications Working Load Limit Wll
3000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
