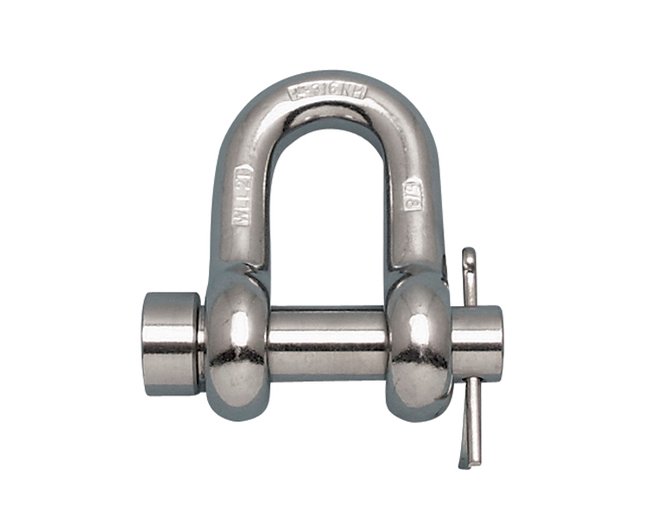

Suncor US Round Pin Chain Shackle - Stainless Steel Grade 316-NM

Name: Suncor US Round Pin Chain Shackle - Stainless Steel Grade 316-NM
Brand: Suncor Stainless, Inc.
SKU: STA-51c1ed
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-51c1ed

Premium Suncor stainless steel US Round Pin Chain Shackle for secure heavy load handling in industrial and marine settings.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Safely secure heavy loads in industrial and marine environments with our Suncor US Round Pin Chain Shackle. Made from drop-forged 316-NM stainless steel, it offers superior corrosion resistance. This shackle features an oversize round pin, is load rated up to 1000 lb, and conforms to Class 1, Fed Spec RR-C-271 Type IVB standards. Available in various sizes, this US-made product ensures premium quality and durability for your applications.

Product Specifications

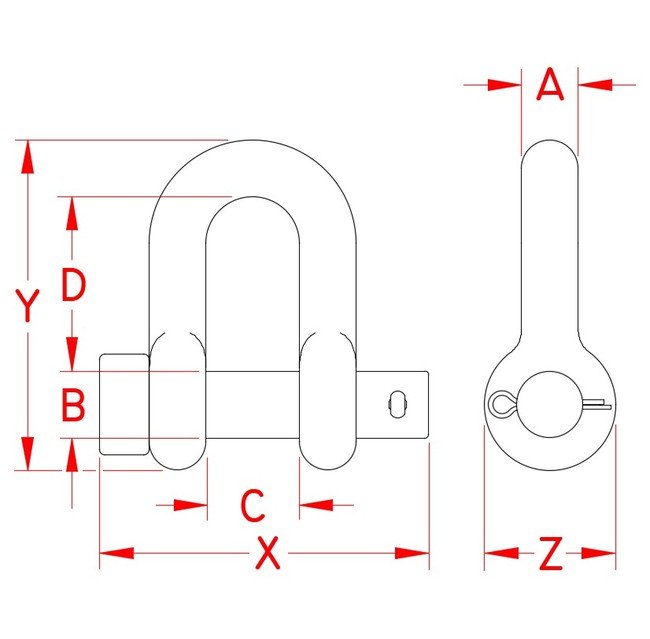

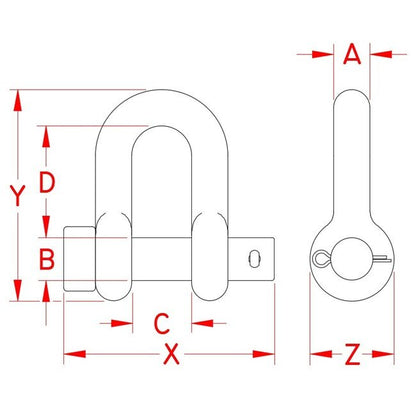

Specifications Dimension A

1/4 in

Specifications Dimension B

0.32 in

Specifications Dimension C

0.46 in

Specifications Dimension D

0.87 in

Specifications Dimension X

1.51 in

Specifications Dimension Y

1.59 in

Specifications Dimension Z

0.60 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Made in USA

Specifications Material

316-NM Stainless Steel

Specifications Specification

Class 1 | Fed. Spec. RR-C-271 | Type IVB

Specifications Suncor Exclusive

Yes

Specifications Weight

0.1 lb

Specifications Working Load Limit Wll

1000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030

Suncor US Round Pin Chain Shackle - Stainless Steel Grade 316-NM
