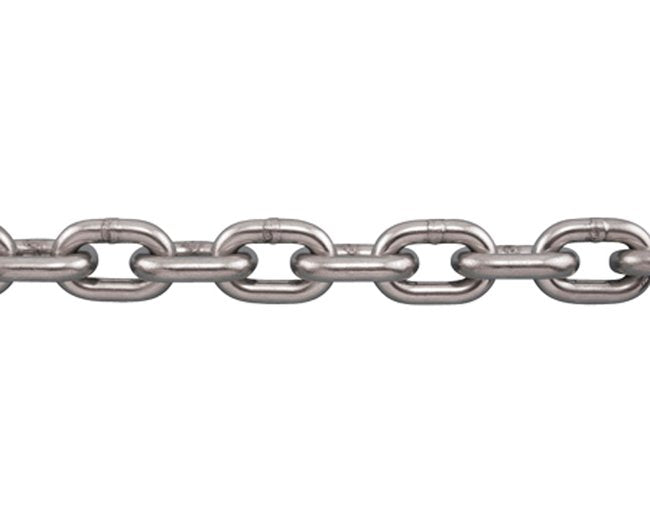

Suncor® 316L Stainless Steel Lifting Chain, 1/2in, Grade 50

Suncor® 316L Stainless Steel Lifting Chain, 1/2in, Grade 50

CHA-690d4e

Premium Suncor® 316L Stainless Steel Lifting Chain for safe and durable overhead lifting operations.

$189.99
$189.99
Sale

Initiate Order

Suncor® 316L Stainless Steel Lifting Chain, 1/2in, Grade 50

Suncor® 316L Stainless Steel Lifting Chain, 1/2in, Grade 50

$189.99

Quantity: 1

Claim Your Seller Account

Suncor® 316L Stainless Steel Lifting Chain, 1/2in, Grade 50

Suncor® 316L Stainless Steel Lifting Chain, 1/2in, Grade 50

$189.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Suncor® Stainless 1/2 Inch S5 Grade 50 Lifting Chain is precision-engineered from 316L stainless steel, meeting MIL-DTL-32655 standards. With a high Basic Load and Working Load Limit of 29,200 lbs and 7,300 lbs respectively, this chain ensures safe overhead lifting operations. Designed for durability and reliability, it is calibrated to Grade 80 dimensions, suitable for gradual pulls. Compliant with industry standards, each component is rigorously tested. Trust Suncor® for premium quality lifting solutions.

Product Specifications

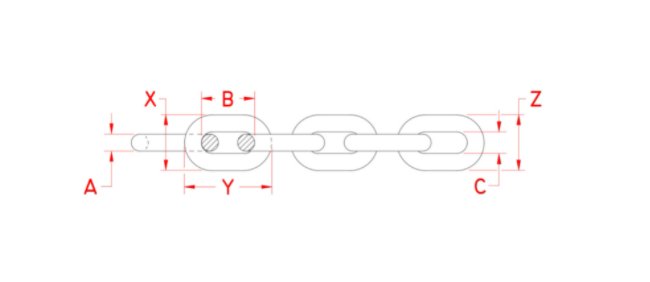

Dimensions In Dimension A
0.51 in
Dimensions In Dimension B
1.55 in
Dimensions In Dimension C
0.75 in
Dimensions In Height X
1.78 in
Dimensions In Length Y
2.53 in
Dimensions In Width Z
1.78 in
Note Note
Calibrated suncor® grade 50 lifting chain, made to grade 80 dimensions. meets the requirements of: MIL-DTL-32655. never exceed working load limit.Working loads are based on gradual pull and not shock loads. make sure that all components in your assembly are overhead lifting rated andHave the same working loads. All dimensions are nominal (± 3%) and are subject to change without notice.Rated for overhead liftingImported
Specifications Basic Load Bl
29,200 lb
Specifications Carton Quantity
1
Specifications Each Quantity
1
Specifications Grade
316L Stainless Steel
Specifications Industry Standards
MIL-DTL-32655
Specifications Inner Quantity
1
Specifications Package Type
Polybag
Specifications Size
1/2 in
Specifications Upc Code
791506067603
Specifications Weight Wt
2.60 lb/ft
Specifications Working Load Limit Wll
7,300 lb
CAGE
1CXX6
