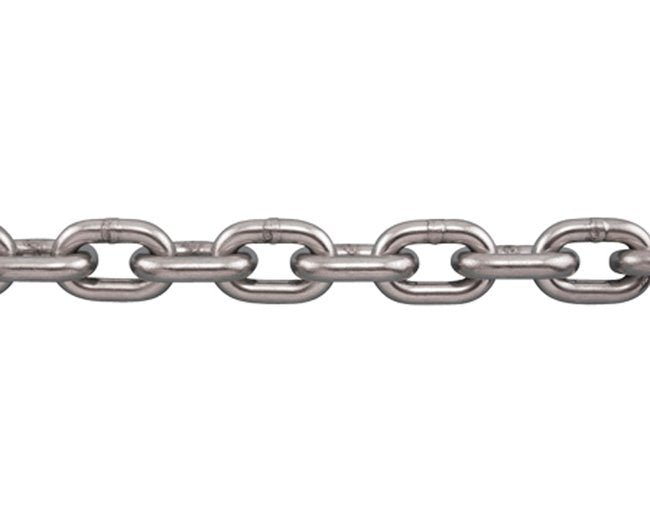

Suncor® Stainless 316L Grade 50 3/16 inch Lifting Chain

Suncor® Stainless 316L Grade 50 3/16 inch Lifting Chain

SKU:CHA-639c73

Premium Suncor® Stainless 316L Grade 50 3/16 inch Lifting Chain for industrial and institutional lifting needs.

Regular price $25.99
Regular price Sale price $25.99
Sale

Initiate Order

Suncor® Stainless 316L Grade 50 3/16 inch Lifting Chain

Suncor® Stainless 316L Grade 50 3/16 inch Lifting Chain

$25.99

Quantity: 1

Claim Your Seller Account

Suncor® Stainless 316L Grade 50 3/16 inch Lifting Chain

Suncor® Stainless 316L Grade 50 3/16 inch Lifting Chain

$25.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Suncor® Stainless 316L Grade 50 Lifting Chain is a premium choice for both industrial and institutional lifting applications. Calibrated to grade 80 dimensions, this chain ensures exceptional strength and durability. With a Working Load Limit (WLL) of 1,100 lb and a Basic Load (BL) of 4,400 lb, it meets MIL-DTL-32655 requirements for overhead lifting. Ensure safety and reliability with this grade 50 chain that excels in performance and compliance.

Product Specifications

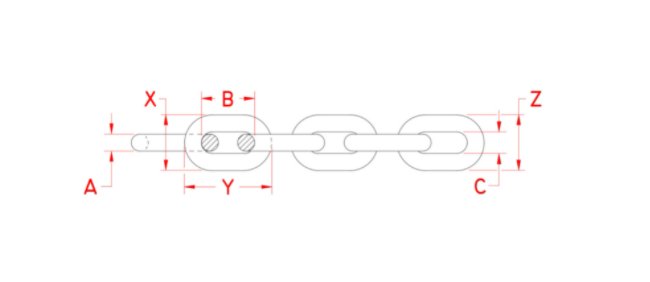

Dimensions In Dimension A
0.19 in
Dimensions In Dimension B
0.58 in
Dimensions In Dimension C
0.25 in
Dimensions In Height X
0.66 in
Dimensions In Length Y
0.97 in
Dimensions In Width Z
0.66 in
Note Note
Calibrated suncor® grade 50 lifting chain, made to grade 80 dimensions. meets the requirements of: MIL-DTL-32655. never exceed working load limit.Working loads are based on gradual pull and not shock loads. make sure that all components in your assembly are overhead lifting rated andHave the same working loads. All dimensions are nominal (± 3%) and are subject to change without notice.Rated for overhead liftingImported
Specifications Basic Load Bl
4,400 lb
Specifications Carton Quantity
400
Specifications Each Quantity
1
Specifications Grade
316L Stainless Steel
Specifications Industry Standards
MIL-DTL-32655
Specifications Inner Quantity
1
Specifications Package Type
Polybag
Specifications Size
3/16 in
Specifications Upc Code
791506045854
Specifications Weight Wt
0.36 lb/ft
Specifications Working Load Limit Wll
1,100 lb
CAGE
1CXX6
NAICS
336413
