Suncor® Stainless 5/8 Inch Grade 50 Lifting Chain

Suncor® Stainless 5/8 Inch Grade 50 Lifting Chain

CHA-675a3a

Suncor® Stainless 5/8 Inch Grade 50 Lifting Chain - High-strength stainless steel chain for secure overhead lifting applications.

$149.99
$149.99
Sale

Initiate Order

Suncor® Stainless 5/8 Inch Grade 50 Lifting Chain

Suncor® Stainless 5/8 Inch Grade 50 Lifting Chain

$149.99

Quantity: 1

Claim Your Seller Account

Suncor® Stainless 5/8 Inch Grade 50 Lifting Chain

Suncor® Stainless 5/8 Inch Grade 50 Lifting Chain

$149.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

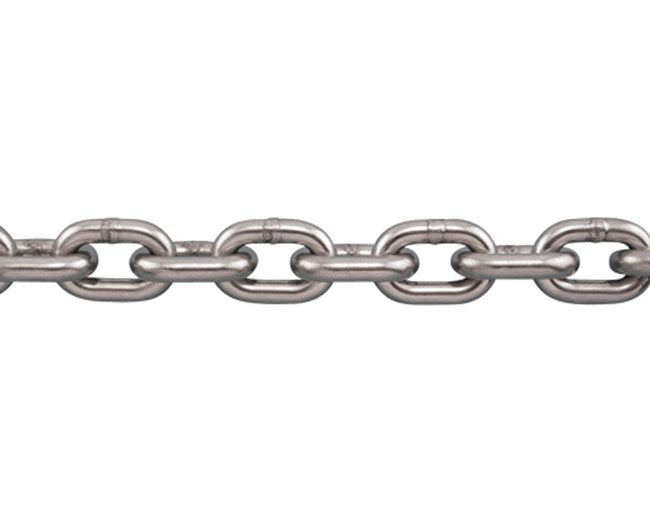

The Suncor® Stainless 5/8 Inch Grade 50 Lifting Chain offers exceptional strength and durability for overhead lifting applications. Constructed from 316L stainless steel to meet MIL-DTL-32655 standards, this chain ensures reliable performance with a Working Load Limit (WLL) of 9,800 lb. With dimensions calibrated to grade 80 specifications, it provides a Basic Load (BL) capacity of 39,200 lb. Trust in its quality for safe and efficient lifting operations in various settings.

Product Specifications

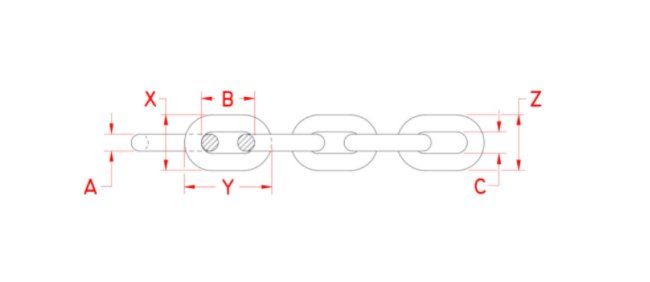

Dimensions In Dimension A
0.63 in
Dimensions In Dimension B
1.91 in
Dimensions In Dimension C
0.90 in
Dimensions In Height X
2.16 in
Dimensions In Length Y
3.12 in
Dimensions In Width Z
2.16 in
Note Note
Calibrated suncor® grade 50 lifting chain, made to grade 80 dimensions. meets the requirements of: MIL-DTL-32655. never exceed working load limit.Working loads are based on gradual pull and not shock loads. make sure that all components in your assembly are overhead lifting rated andHave the same working loads. All dimensions are nominal (± 3%) and are subject to change without notice.Rated for overhead liftingImported
Specifications Basic Load Bl
39,200 lb
Specifications Carton Quantity
200
Specifications Each Quantity
1
Specifications Grade
316L Stainless Steel
Specifications Industry Standards
MIL-DTL-32655
Specifications Inner Quantity
1
Specifications Package Type
Polybag
Specifications Size
5/8 in
Specifications Upc Code
791506062295
Specifications Weight Wt
3.31 lb/ft
Specifications Working Load Limit Wll
9,800 lb
CAGE
1CXX6
NAICS
336413
