Suncor® Stainless Steel 1/2 in S4 NACM Industrial Chain

Suncor® Stainless Steel 1/2 in S4 NACM Industrial Chain

CHA-2a7d28

High-quality Suncor® 316L Stainless Steel S4 NACM Chain suitable for diverse industrial applications. Compliant with MIL-DTL-32655 and NACM standards.

$89.99
$89.99
Sale

Initiate Order

Suncor® Stainless Steel 1/2 in S4 NACM Industrial Chain

Suncor® Stainless Steel 1/2 in S4 NACM Industrial Chain

$89.99

Quantity: 1

Claim Your Seller Account

Suncor® Stainless Steel 1/2 in S4 NACM Industrial Chain

Suncor® Stainless Steel 1/2 in S4 NACM Industrial Chain

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

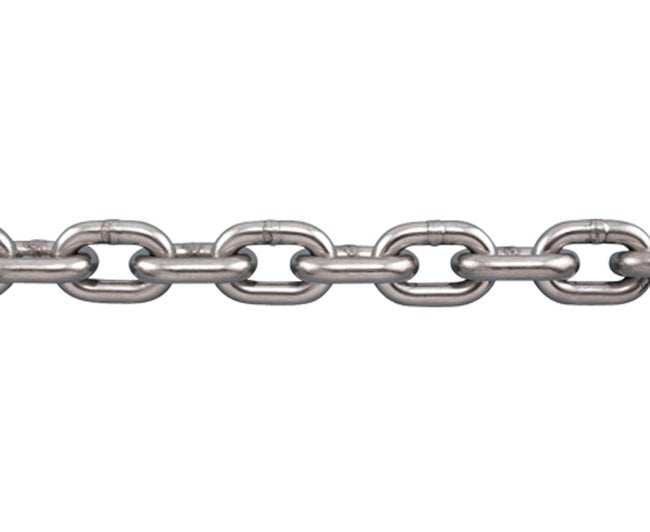

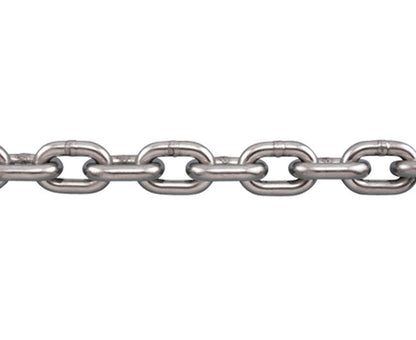

The Suncor® Stainless Steel S4 NACM Industrial Chain is meticulously crafted in the USA to meet G4 dimensions. With a 316L stainless steel construction, it boasts a Basic Load (BL) of 26,000 lb and a Working Load Limit (WLL) of 6,500 lb, making it ideal for various industrial applications. This chain fully complies with MIL-DTL-32655 and NACM specifications, ensuring exceptional quality and performance.

Product Specifications

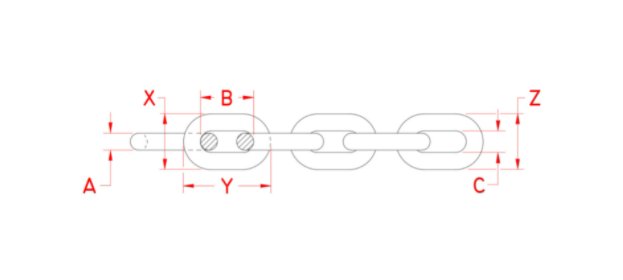

Dimensions In Dimension A
0.51 in
Dimensions In Dimension B
1.59 in
Dimensions In Dimension C
0.76 in
Dimensions In Height X
1.80 in
Dimensions In Length Y
2.53 in
Dimensions In Width Z
1.80 in
Note Note
Suncor® grade S4 chain is made to "G4" dimensions. meets the requirements of: MIL-DTL-32655. it fits many standard U.S. windlasses and industrialApplications. this chain complies fully with all requirements of the U.S. national association of chain manufacturers’ (nacm’s) specifications.All dimensions are nominal (± 3%) and are subject to change without notice.Meets G4 Size
Specifications Basic Load Bl
26,000 lb
Specifications Carton Quantity
200
Specifications Each Quantity
1
Specifications Grade
316L Stainless Steel
Specifications Industry Standards
MIL-DTL-32655
Specifications Inner Quantity
1
Specifications Package Type
Polybag
Specifications Size
1/2 in
Specifications Upc Code
791506045984
Specifications Weight Wt
2.10 lb/ft
Specifications Working Load Limit Wll
6,500 lb
CAGE
1CXX6
NAICS
336413
