Sunlight Readable 15" Industrial Panel PC with Intel Core i5 Processor
Sunlight Readable 15" Industrial Panel PC with Intel Core i5 Processor
SKU:IND-962b72
Experience peak performance with the Sunlight Readable 15" Industrial Panel PC featuring Intel Core i5 processor and 1,800 nits brightness.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
Sunlight Readable 15" Industrial Panel PC with Intel Core i5 Processor
$2,399.99
Quantity: 1
Claim Your Seller Account
Sunlight Readable 15" Industrial Panel PC with Intel Core i5 Processor
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

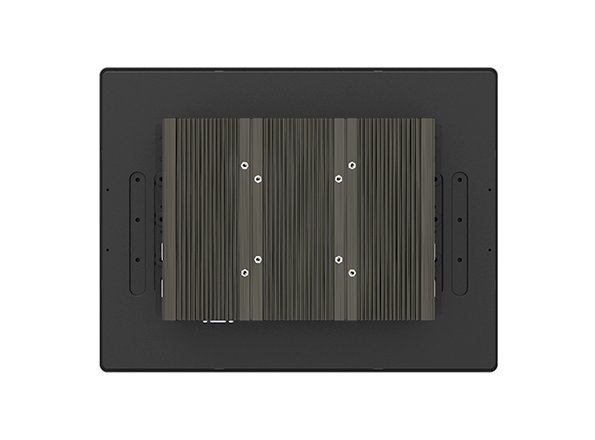

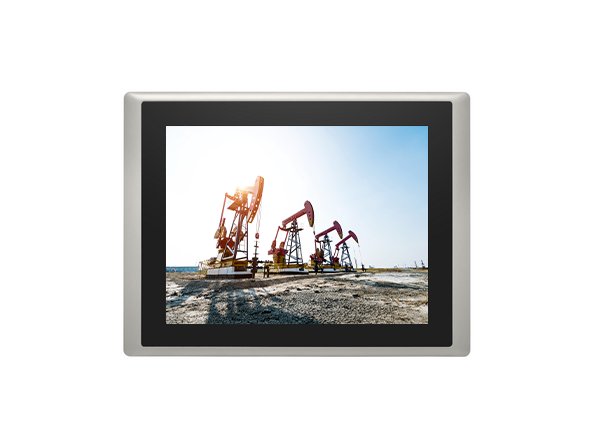

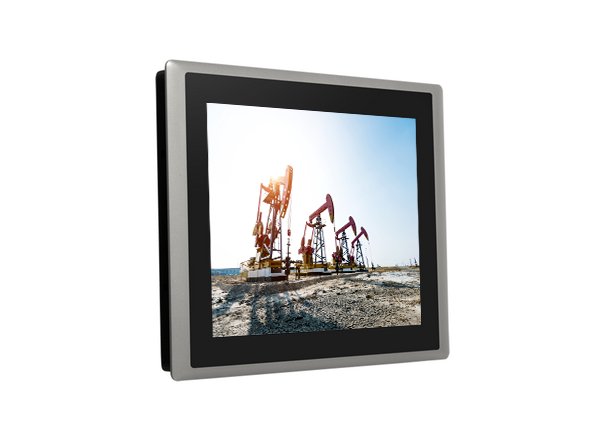

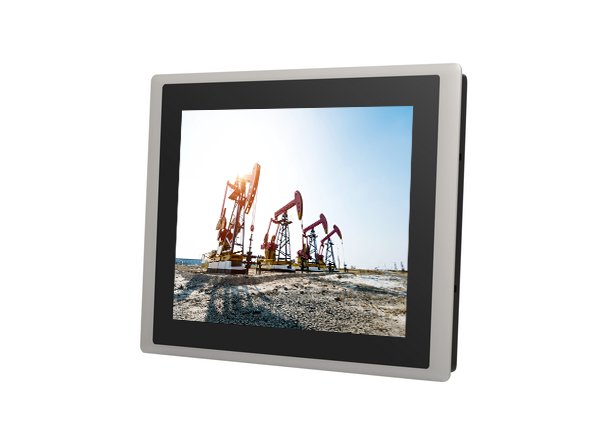

The Sunlight Readable 15" Industrial Panel PC from the CS-100/P2202 series features an ultra-high brightness of up to 1,800 nits and is powered by the 12th Gen Intel Core i5-1245UE processor. With a rugged design, rich I/O ports, and a variety of screen sizes and resolutions, this panel PC is ideal for outdoor kiosk and HMI applications. It boasts features like quad independent display support, M.2 expansion, and IP65 front panel protection, ensuring reliable performance in harsh environments.
Product Specifications
Additional Information Additional Information
Excellent Computing PerformanceThe CS-100/P2202 series is equipped with the 12th Gen Intel® Core⢠i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. The U-series has a low power consumption of only 15W, boasts excellent performance with up to 10 cores (2P+8E), and includes the built-in Intel® Iris® Xe graphics to easily handle image classification inference performance in AI deep learning.CDS Patented TechnologyCincoze® Convertible Display System (CDS) patented technology makes field-side maintenance and future upgrades easier. Replacing a display or improving system performance only requires replacing a single component, which significantly cuts upgrade costs.Patent No. M482908Complete Range of SizesThe CS-100/P2202 series offers a variety of display options, with screen sizes from 12 to 24 inches, support for up to full HD resolution, high brightness up to 1,800 nits, and multi-point P-Cap touchscreen, which can be selected according to application needs.Wide Temps, Safe, ReliableIn order to overcome the harsh outdoor environment and unpredictable climate, the CS-100/P2202 series has a series of industrial-grade protections, including a wide operating temperature range (-20ºC to 70ºC) that beats the industry standard and an IP65 dustproof/water resistant front panel to ensure a high degree of product safety.
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-Out, Phone Jack 3.5 mm
Audio Mic In
1x Mic-in, Phone Jack 3.5 mm
Cs 115 Ambient Operating Temperature With Air Flow Cs 115
-20 to 70 ºC
Cs 115 Backlight Mean Time Between Failures Mtbf Cs 115
50,000 h
Cs 115 Brightness Cs 115
1800 cd/m²
Cs 115 Contrast Ratio Cs 115
800:1
Cs 115 Depth Cs 115
312.4 mm
Cs 115 Electromagnetic Compatibility Emc Cs 115
European Conformity (CE) | Federal Communications Commission (FCC) | Interference-Causing Equipment Standard 003 (ICES-003 Class A) | United Kingdom Conformity Assessed (UKCA)
Cs 115 Electromagnetic Interference Emi Cs 115
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Cs 115 Environmental Management System Ems Cs 115
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/mEN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 3VEN/IEC 61000-4-8 PFMF: 50 Hz, 1A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Cs 115 Front Panel Protection Cs 115
IP 65 Compliant
Cs 115 Height Cs 115
59.2 mm
Cs 115 Liquid Crystal Display Lcd Color Cs 115
16.2M
Cs 115 Liquid Crystal Display Lcd Size Cs 115
15 in | 4:3
Cs 115 Maximum Power Consumption Cs 115
27.26 W
Cs 115 Maximum Resolution Cs 115
1024 x 768 (XGA)
Cs 115 Mechanical Construction Cs 115
Flat Rugged Aluminum Die-Casting Bezel
Cs 115 Non Condensing Relative Humidity Rh At 40 Degree Celsius
90 %
Cs 115 Note For Ambient Operating Temperature With Air Flow Cs 1
With Industrial Grade Peripherals
Cs 115 Safety Cs 115
Canadian Underwriters Laboratories (cUL) | Certification Body (CB) | European Norm (EN 62368-1) | International Electrotechnical Commission (IEC) | Underwriters Laboratories (UL)
Cs 115 Storage Temperature Cs 115
-30 to 70 ºC
Cs 115 Touchscreen Type Cs 115
Projected Capacitive
Cs 115 Viewing Angle Horizontal Vertical H V Cs 115
160/150
Cs 115 Weight Cs 115
4.36 kg
Cs 115 Width Cs 115
408 mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Environment Environmental Management System Ems
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/mEN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 10VEN/IEC 61000-4-8 PFMF: 50 Hz, 30A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Environment Non Condensing Relative Humidity Rh At 70 Degree Cel
95 %
Physical Depth
190 mm
Physical Height
41.5 mm
Physical Width
254.5 mm
Power Power Button
1x ATX Power On/Off Button
Power Power Input
9 to 48 VDC, 3-Pin Terminal Block
Power Power Mode Switch
1x AT/ATX Mode Switch
Power Remote Power Onoff
1x Remote Power On/Off, 2-pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
