Sunlight Readable 19" Industrial Panel PC with Intel Core i5-1245UE Processor
Sunlight Readable 19" Industrial Panel PC with Intel Core i5-1245UE Processor
SKU:IND-92f61c
High-performance 19" Industrial Panel PC with Intel Core i5 processor, sunlight-readable display, and rugged design.
Regular price
$1,799.99
Regular price
Sale price
$1,799.99
Unit price
per
Initiate Order
Sunlight Readable 19" Industrial Panel PC with Intel Core i5-1245UE Processor
$1,799.99
Quantity: 1
Claim Your Seller Account
Sunlight Readable 19" Industrial Panel PC with Intel Core i5-1245UE Processor
$1,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

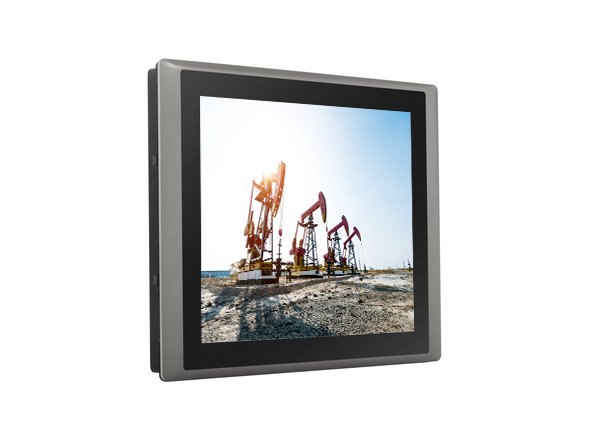

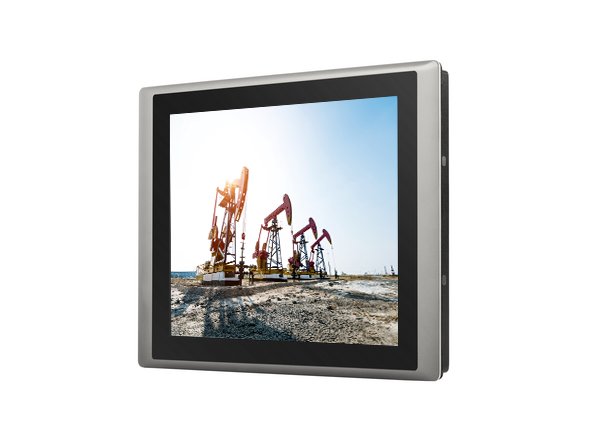

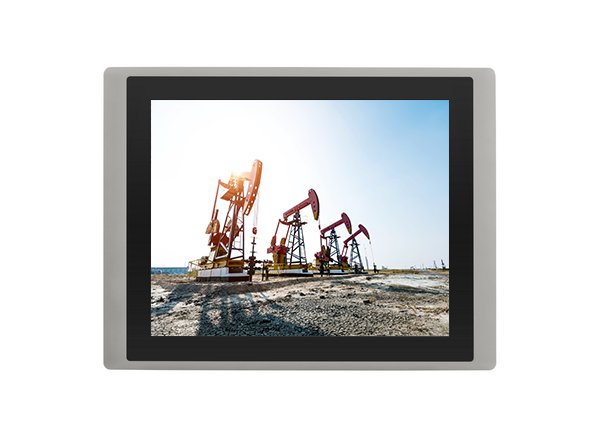

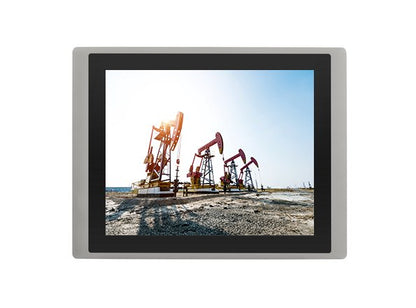

Experience exceptional performance with the CS-119C-R11/P2202-i5-R10 Industrial Panel PC featuring a 19" sunlight-readable TFT-LCD display with 1600 nits brightness and Intel Core i5-1245UE processor. This rugged modular panel PC is equipped with a projected capacitive touch interface, dual LAN ports, multiple display output options, extensive I/O ports, and a fanless design for reliable operation in challenging environments.
Product Specifications
Additional Information Additional Information
Excellent Computing PerformanceThe CS-100/P2202 series is equipped with the 12th Gen Intel® Core⢠i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. The U-series has a low power consumption of only 15W, boasts excellent performance with up to 10 Coreâ¢s (2P+8E), and includes the built-in Intel® Iris® Xe graphics to easily handle image classification inference performance in AI deep learning.CDS Patented TechnologyCincoze® Convertible Display System (CDS) patented technology makes field-side maintenance and future upgrades easier. Replacing a display or improving system performance only requires replacing a single component, which significantly cuts upgrade costs.Patent No. M482908Complete Range of SizesThe CS-100/P2202 series offers a variety of display options, with screen sizes from 12 to 24 inches, support for up to full HD resolution, high brightness up to 1,800 nits, and multi-point P-Cap touchscreen, which can be selected according to application needs.Wide Temps, Safe, ReliableIn order to overcome the harsh outdoor environment and unpredictable climate, the CS-100/P2202 series has a series of industrial-grade protections, including a wide operating temperature range (-20°C to 70°C) that beats the industry standard and an IP65 dustproof/water resistant front panel to ensure a high degree of product safety.
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-Out, Phone Jack 3.5 mm
Audio Mic In
1x Mic-in, Phone Jack 3.5 mm
Cs 119 Ambient Operating Temperature With Air Flow Cs 119
-20 to 70 ºC
Cs 119 Backlight Mean Time Between Failures Mtbf Cs 119
50,000 h
Cs 119 Brightness Cs 119
1600 cd/m²
Cs 119 Contrast Ratio Cs 119
1000:1
Cs 119 Depth Cs 119
389.3 mm
Cs 119 Electromagnetic Compatibility Emc Cs 119
European Conformity (CE) | Federal Communications Commission (FCC) | Interference-Causing Equipment Standard 003 (ICES-003 Class A) | United Kingdom Conformity Assessed (UKCA)
Cs 119 Electromagnetic Interference Emi Cs 119
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Cs 119 Environmental Management System Ems Cs 119
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/mEN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 3VEN/IEC 61000-4-8 PFMF: 50 Hz, 1A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Cs 119 Front Panel Protection Cs 119
IP 65 Compliant
Cs 119 Height Cs 119
63.2 mm
Cs 119 Liquid Crystal Display Lcd Color Cs 119
16.7M
Cs 119 Liquid Crystal Display Lcd Size Cs 119
19 in | 5:4
Cs 119 Maximum Power Consumption Cs 119
44.45 W
Cs 119 Maximum Resolution Cs 119
1280 x 1024 (SXGA)
Cs 119 Mechanical Construction Cs 119
Flat Rugged Aluminum Die-Casting Bezel
Cs 119 Non Condensing Relative Humidity Rh At 40 Degree Celsius
90 %
Cs 119 Pixel Pitch Horizontal Cs 119
0.294 mm
Cs 119 Pixel Pitch Vertical Cs 119
0.294 mm
Cs 119 Safety Cs 119
Canadian Underwriters Laboratories (cUL) | Certification Body (CB) | European Norm (EN 62368-1) | International Electrotechnical Commission (IEC) | Underwriters Laboratories (UL)
Cs 119 Storage Temperature Cs 119
-30 to 70 ºC
Cs 119 Touchscreen Type Cs 119
Projected Capacitive
Cs 119 Viewing Angle Horizontal Vertical H V Cs 119
170/160
Cs 119 Weight Cs 119
6.96 kg
Cs 119 Width Cs 119
510 mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Environment Environmental Management System Ems
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/mEN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 10VEN/IEC 61000-4-8 PFMF: 50 Hz, 30A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Physical Depth
190 mm
Physical Height
41.5 mm
Physical Width
254.5 mm
Power Power Button
1x ATX Power On/Off Button
Power Power Input
9 to 48 VDC, 3-Pin Terminal Block
Power Power Mode Switch
1x AT/ATX Mode Switch
Power Remote Power Onoff
1x Remote Power On/Off, 2-pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
