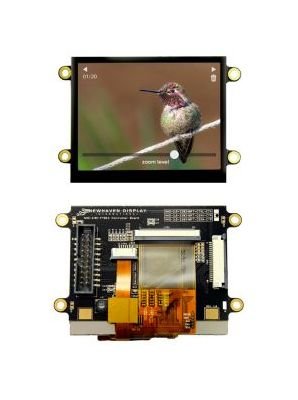

Sunlight Readable 3.5in Graphic LCD Module
Sunlight Readable 3.5in Graphic LCD Module
SKU:EVE-de9f02
Enhance visibility in any environment with our 3.5in Sunlight Readable LCD Module. Vibrant colors and responsive touch make it ideal for diverse applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Sunlight Readable 3.5in Graphic LCD Module
$79.99
Quantity: 1
Claim Your Seller Account
Sunlight Readable 3.5in Graphic LCD Module
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior clarity with our Sunlight Readable 3.5in Graphic LCD Module from the EVE2 Thin Film Transistor (TFT) line. This module features a vibrant Transmissive Red, Green, Blue (RGB) TFT color display with a resolution of 320 x 240 pixels (QVGA), ensuring sharp graphics even in bright outdoor conditions. The resistive touch panel provides intuitive interaction, while the white LED backlight enhances visibility. With compliance to RoHS, REACH, and lead-free standards, this module is not only high-performing but also environmentally responsible.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Connection Details Cn1 Connector Type
Male Insulation Displacement Connector (IDC) Box Header
Connection Details Cn1 Pitch Size
2.54 mm
Connection Details Cn1 Size
2 x 10 in
Connection Details Cn2 Connector Type
Top-Contact Flat Flex Cable (FFC) Connector
Connection Details Cn2 Pitch Size
1.00 mm
Connection Details Number Of Cn1 Pins
20
Connection Details Number Of Cn2 Pins
20
Dimension Outline Height
63.9 mm
Dimension Outline Width
92 mm
Specifications Back Light Emitting Diode Led Color
White
Specifications Controller
FT812
Specifications Country Of Origin
China
Specifications Diagonal Size
3.5 in | 88.90 mm
Specifications Display Format
320 x 240 Pixels | Quarter Video Graphics Array (QVGA)
Specifications Display Mode
Transmissive
Specifications Display Type
Sunlight Readable
Specifications Export Control Classification Number Eccn Number
EAR99
Specifications Graphics Color
Red, Green, Blue (RGB)
Specifications Interface
Service Provider Interface (SPI)
Specifications International Harmonize Code
8531.20.0020
Specifications Is Dry Pack Required
No
Specifications Is Part Lead Pb Free
Yes
Specifications Is Part Restriction Of Hazardous Substances Rohs
Yes
Specifications Is Part Static Sensitive
Yes
Specifications Lead Time
16 w
Specifications Minimum Order Quantity Moq
100
Specifications Moisture Sensitivity Level Msl
Maintain in Room Temperature
Specifications Multiple Order
Varies Upon Purchase
Specifications North American Free Trade Agreement Nafta Complia
No
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Packaging Type
Box | Bulk | Tray
Specifications Part Status
Stocked
Specifications Registerable
Yes
Specifications Registration Evaluation Authorization And Restric
Yes
Specifications Touch Panel
Resistive
Specifications View
12:00
Specifications Voltage Supply
3.3 V
