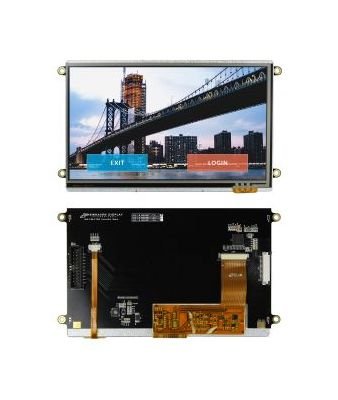

Sunlight Readable 7 Inch Capacitive LCD Display Module
Sunlight Readable 7 Inch Capacitive LCD Display Module
SKU:EVE-929adf
Enhance outdoor visibility with our Sunlight Readable 7 Inch Capacitive LCD Display Module. High resolution, environmentally compliant, ideal for various applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Sunlight Readable 7 Inch Capacitive LCD Display Module
$79.99
Quantity: 1
Claim Your Seller Account
Sunlight Readable 7 Inch Capacitive LCD Display Module
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sunlight Readable 7 Inch Capacitive LCD Display Module from the EVE2 Thin Film Transistor (TFT) Modules line offers a high-resolution of 800 x 480 pixels in a 7.0-inch diagonal display. Designed for optimal visibility in outdoor environments, it features a Transmissive display mode with a vibrant Red, Green, Blue (RGB) color panel. This module is compliant with RoHS, REACH, and Lead (Pb) free standards, ensuring environmental sustainability and safety. With a wide operating temperature range of -20 to +70 °C, this module is ideal for both consumer and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Connection Details Cn1 Connector Type
Male Insulation Displacement Connector (IDC) Box Header
Connection Details Cn1 Pitch Size
2.54 mm
Connection Details Cn1 Size
2 x 10 in
Connection Details Cn2 Connector Type
Top-Contact Flat Flex Cable (FFC) Connector
Connection Details Cn2 Pitch Size
1.00 mm
Connection Details Number Of Cn1 Pins
20
Connection Details Number Of Cn2 Pins
20
Dimension Outline Height
104 mm
Dimension Outline Width
180.1 mm
Specifications Back Light Emitting Diode Led Color
White
Specifications Controller
FT813
Specifications Country Of Origin
China
Specifications Diagonal Size
7.0 in | 177.8 mm
Specifications Display Format
800 x 480 Pixels | Wide Video Graphics Array (WVGA)
Specifications Display Mode
Transmissive
Specifications Display Type
Sunlight Readable
Specifications Export Control Classification Number Eccn Number
EAR99
Specifications Graphics Color
Red, Green, Blue (RGB)
Specifications Interface
Service Provider Interface (SPI)
Specifications International Harmonize Code
8531.20.0020
Specifications Is Dry Pack Required
No
Specifications Is Part Lead Pb Free
Yes
Specifications Is Part Restriction Of Hazardous Substances Rohs
Yes
Specifications Is Part Static Sensitive
Yes
Specifications Lead Time
16 w
Specifications Minimum Order Quantity Moq
100
Specifications Moisture Sensitivity Level Msl
Maintain in Room Temperature
Specifications Multiple Order
Varies Upon Purchase
Specifications North American Free Trade Agreement Nafta Complia
No
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Packaging Type
Box | Bulk | Tray
Specifications Part Status
Stocked
Specifications Registerable
Yes
Specifications Registration Evaluation Authorization And Restric
Yes
Specifications Touch Panel
Capacitive
Specifications View
12:00
Specifications Voltage Supply
3.3 V
