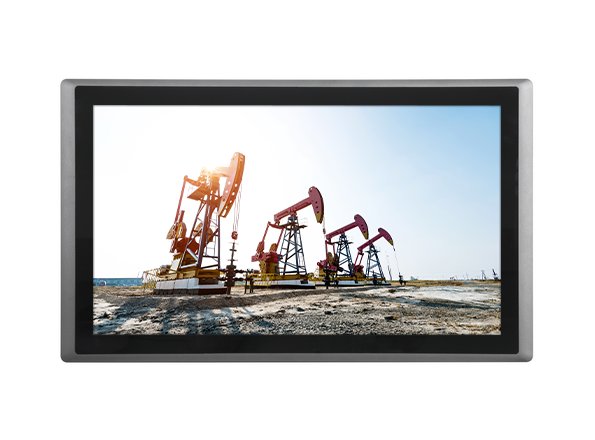

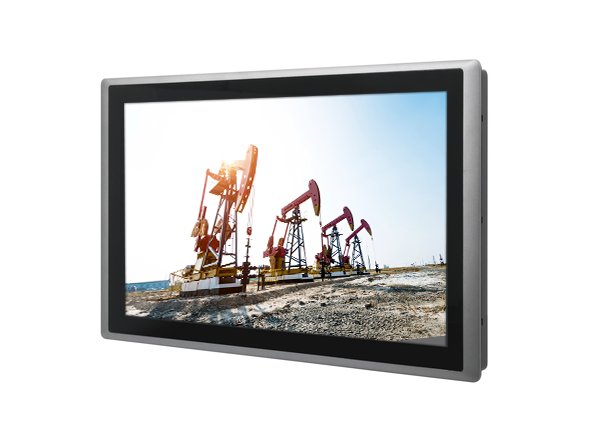

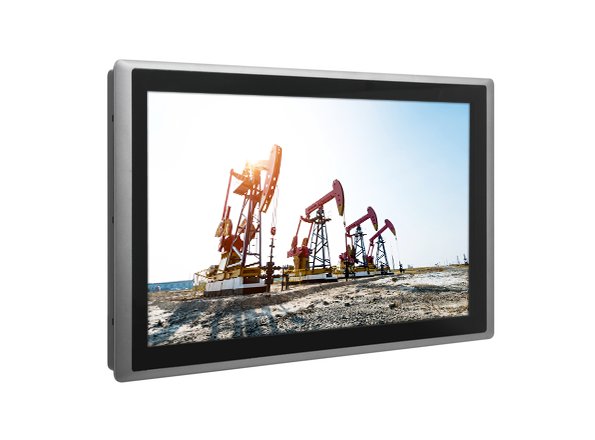

Sunlight Readable Industrial Panel PC with Intel Core i5-1245UE Processor
Sunlight Readable Industrial Panel PC with Intel Core i5-1245UE Processor
SKU:IND-dcb0aa
Enhance productivity in any environment with the 21.5" Sunlight Readable Panel PC powered by Intel Core i5-1245UE processor.
Regular price
$2,199.99
Regular price
Sale price
$2,199.99
Unit price
per
Initiate Order
Sunlight Readable Industrial Panel PC with Intel Core i5-1245UE Processor
$2,199.99
Quantity: 1
Claim Your Seller Account
Sunlight Readable Industrial Panel PC with Intel Core i5-1245UE Processor
$2,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Elevate your workspace with the CS-W121C-R10/P2202-i5-R10 Sunlight Readable Panel PC. Featuring a 21.5" Full HD display and an Intel Core i5-1245UE processor, this rugged unit offers enhanced computing performance and versatile connectivity options. With wide temperature range, IP65 protection, and a modular design for easy upgrades, it ensures reliable operation in challenging environments. Ideal for government and institutional buyers seeking durable solutions with advanced features.
Product Specifications
Additional Information Additional Information
Excellent Computing PerformanceThe CS-100/P2202 series is equipped with the 12th Gen Intel® Core⢠i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. The U-series has a low power consumption of only 15W, boasts excellent performance with up to 10 Coreâ¢s (2P+8E), and includes the built-in Intel® Iris® Xe graphics to easily handle image classification inference performance in AI deep learning.CDS Patented TechnologyCincoze® Convertible Display System (CDS) patented technology makes field-side maintenance and future upgrades easier. Replacing a display or improving system performance only requires replacing a single component, which significantly cuts upgrade costs.Patent No. M482908Complete Range of SizesThe CS-100/P2202 series offers a variety of display options, with screen sizes from 12 to 24 inches, support for up to full HD resolution, high brightness up to 1,800 nits, and multi-point P-Cap touchscreen, which can be selected according to application needs.Wide Temps, Safe, ReliableIn order to overcome the harsh outdoor environment and unpredictable climate, the CS-100/P2202 series has a series of industrial-grade protections, including a wide operating temperature range (-20°C to 70°C) that beats the industry standard and an IP65 dustproof/water resistant front panel to ensure a high degree of product safety.
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-Out, Phone Jack 3.5 mm
Audio Mic In
1x Mic-in, Phone Jack 3.5 mm
Cs W121 Ambient Operating Temperature With Air Flow Cs W121
0 to 80 ºC
Cs W121 Backlight Mean Time Between Failures Mtbf Cs W121
50,000 h
Cs W121 Brightness Cs W121
1,000 cd/m²
Cs W121 Contrast Ratio Cs W121
5000:1
Cs W121 Depth Cs W121
330.5 mm
Cs W121 Electromagnetic Compatibility Emc Cs W121
European Conformity (CE) | Federal Communications Commission (FCC) | Interference-Causing Equipment Standard 003 (ICES-003 Class A) | United Kingdom Conformity Assessed (UKCA)
Cs W121 Electromagnetic Interference Emi Cs W121
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Cs W121 Environmental Management System Ems Cs W121
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/mEN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 3VEN/IEC 61000-4-8 PFMF: 50 Hz, 1A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Cs W121 Front Panel Protection Cs W121
IP 65 Compliant
Cs W121 Height Cs W121
63.2 mm
Cs W121 Liquid Crystal Display Lcd Color Cs W121
16.7M
Cs W121 Liquid Crystal Display Lcd Size Cs W121
21.5 in | 16:9
Cs W121 Maximum Power Consumption Cs W121
31.25 W
Cs W121 Maximum Resolution Cs W121
1920 x 1080 (Full HD)
Cs W121 Mechanical Construction Cs W121
Rugged Aluminum Die-casting Front Bezel
Cs W121 Non Condensing Relative Humidity Rh At 40 Degree Celsius
90 %
Cs W121 Pixel Pitch Horizontal Cs W121
0.24825 mm
Cs W121 Pixel Pitch Vertical Cs W121
0.24825 mm
Cs W121 Safety Cs W121
Canadian Underwriters Laboratories (cUL) | Certification Body (CB) | European Norm (EN 62368-1) | International Electrotechnical Commission (IEC) | Underwriters Laboratories (UL)
Cs W121 Storage Temperature Cs W121
-20 to 80 ºC
Cs W121 Touchscreen Type Cs W121
Projected Capacitive
Cs W121 Viewing Angle Horizontal Vertical H V Cs W121
178/178
Cs W121 Weight Cs W121
5.56 kg
Cs W121 Width Cs W121
550 mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Environment Environmental Management System Ems
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/mEN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 10VEN/IEC 61000-4-8 PFMF: 50 Hz, 30A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Physical Depth
190 mm
Physical Height
41.5 mm
Physical Width
254.5 mm
Power Power Button
1x ATX Power On/Off Button
Power Power Input
9 to 48 VDC, 3-Pin Terminal Block
Power Power Mode Switch
1x AT/ATX Mode Switch
Power Remote Power Onoff
1x Remote Power On/Off, 2-pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
