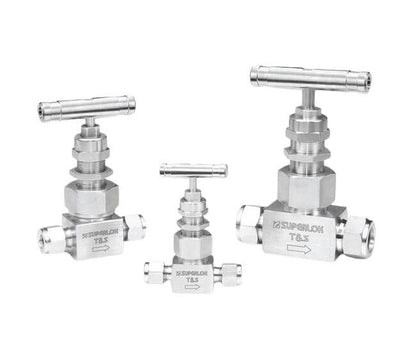

SUNV Series 6.0mm Union Bonnet Needle Valve
SUNV Series 6.0mm Union Bonnet Needle Valve
SKU:SUN-4b33b1
Experience precision flow control with the SUNV Series 6.0mm Union Bonnet Needle Valve, designed for reliability and versatility in various applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SUNV Series 6.0mm Union Bonnet Needle Valve
$129.99
Quantity: 1
Claim Your Seller Account
SUNV Series 6.0mm Union Bonnet Needle Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUNV Series 6.0mm Union Bonnet Needle Valve offers precise flow control with its compact design and low operating torques. Featuring 3/8 inch SUPERLOK® Inlet End Connections and a non-rotating vee stem tip, this valve is panel mountable and provides straight and angle flow patterns. With options for different stem types and packing materials, it ensures reliable performance across various temperature ranges. Each valve undergoes rigorous nitrogen testing, meeting strict leakage rate standards. Dimensional flexibility and optional handle choices add to its versatility and adaptability for diverse applications.
Product Specifications
Features Features
Compact designLow operating torquesPanel mountableStraight and angle flow patternsNon rotating vee stem tipThree stem type are available
Handle Handle
316 stainless steel, alloy 400 and alloy C-276 body valve - Stainless steel bar handles are standard.Black round knob handles are optional. (SUNV1 and SUNV2 series)Anodized black aluminum bar handles are optional.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Data Temperature Rating For Graphite Packing
-65 to 1200 ºF | -53 to 648 ºC
Technical Data Temperature Rating For Polychlorotrifluoroethylen
-65 to 200 ºF | -53 to 93 ºC
Technical Data Temperature Rating For Polyether Ether Ketone Pee
-65 to 600 ºF | -53 to 315 ºC
Technical Data Temperature Rating For Polytetrafluoroethylene Pt
-65 to 450 ºF | -53 to 232 ºC
Technical Specs Body Material
316 Stainless Steel | Alloy 400 (Monel) | Alloy C-276 (Hastelloy)
Technical Specs Dimension A
36.5 mm
Technical Specs Dimension B1
32.5 mm
Technical Specs Dimension B2
42.9 mm
Technical Specs Dimension C
45.3 mm
Technical Specs Dimension D1
34.1 mm
Technical Specs Dimension D2
31.0 mm
Technical Specs Dimension E1
12.7 mm
Technical Specs Dimension E2
12.7 mm
Technical Specs Dimension F
64.0 mm
Technical Specs Dimension H1
93.7 mm
Technical Specs Dimension H2
90.5 mm
Technical Specs Dimension I
19.9 mm
Technical Specs Dimension L
73.0 mm
Technical Specs Flow Coefficients Cv
0.86
Technical Specs Inlet End Connections
3/8 in. SUPERLOK®
Technical Specs Maximum Allowable Leak Rate
0.1 cm³/min
Technical Specs Orifice Size
6.0 mm
Technical Specs Outlet End Connections
3/8 in. SUPERLOK®
Technical Specs Packing
PTFE packing is standard. PEEK and Graphite packing is optional.
Technical Specs Packing Material
Graphite Packing | Polyether Ether Ketone (PEEK) Packing | Polytetrafluoroethylene (PTFE) (Standard)
Technical Specs Stem Type
Non Rotating Vee Stem (Standard) | Regulating Stem | Soft Seat Stem
Testing Testing
Each and every Valve is tested with nitrogen at 1000 psig (69 bar).Valve have max allowable leak rate of 0.1 cm³/min.Shell testing is available upon request
