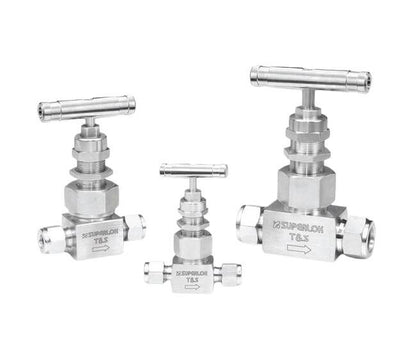

SUNV Series 6.0mm Union Bonnet Needle Valve
SUNV Series 6.0mm Union Bonnet Needle Valve
SKU:SUN-9c1167
Precision control in a compact design with versatile stem options, ensuring reliable and leak-free operation. Compliant with industry standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SUNV Series 6.0mm Union Bonnet Needle Valve
$89.99
Quantity: 1
Claim Your Seller Account
SUNV Series 6.0mm Union Bonnet Needle Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUNV Series 6.0mm Union Bonnet Needle Valve is designed for precision flow control, featuring a compact design and low operating torques. With a non-rotating vee stem tip and multiple stem type options, this valve ensures reliable performance. Tested to withstand high pressure levels, it offers leak-free operation and is panel mountable for versatile installation. Compliant with industry standards, this valve is ideal for applications requiring durability and efficiency.
Product Specifications
Features Features
Compact designLow operating torquesPanel mountableStraight and angle flow patternsNon rotating vee stem tipThree stem type are available
Handle Handle
316 stainless steel, alloy 400 and alloy C-276 body valve - Stainless steel bar handles are standard.Black round knob handles are optional. (SUNV1 and SUNV2 series)Anodized black aluminum bar handles are optional.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Data Temperature Rating For Graphite Packing
-65 to 1200 ºF | -53 to 648 ºC
Technical Data Temperature Rating For Polychlorotrifluoroethylen
-65 to 200 ºF | -53 to 93 ºC
Technical Data Temperature Rating For Polyether Ether Ketone Pee
-65 to 600 ºF | -53 to 315 ºC
Technical Data Temperature Rating For Polytetrafluoroethylene Pt
-65 to 450 ºF | -53 to 232 ºC
Technical Specs Body Material
316 Stainless Steel | Alloy 400 (Monel) | Alloy C-276 (Hastelloy)
Technical Specs Dimension A
28.6 mm
Technical Specs Dimension B1
25.4 mm
Technical Specs Dimension B2
28.6 mm
Technical Specs Dimension C
38.1 mm
Technical Specs Dimension D1
34.1 mm
Technical Specs Dimension D2
37.3 mm
Technical Specs Dimension E1
12.7 mm
Technical Specs Dimension E2
12.7 mm
Technical Specs Dimension F
64.0 mm
Technical Specs Dimension H1
93.7 mm
Technical Specs Dimension H2
96.9 mm
Technical Specs Dimension I
19.9 mm
Technical Specs Dimension L
57.2 mm
Technical Specs Flow Coefficients Cv
0.86
Technical Specs Inlet End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Maximum Allowable Leak Rate
0.1 cm³/min
Technical Specs Orifice Size
6.0 mm
Technical Specs Outlet End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Packing
PTFE packing is standard. PEEK and Graphite packing is optional.
Technical Specs Packing Material
Graphite Packing | Polyether Ether Ketone (PEEK) Packing | Polytetrafluoroethylene (PTFE) (Standard)
Technical Specs Stem Type
Non Rotating Vee Stem (Standard) | Regulating Stem | Soft Seat Stem
Testing Testing
Each and every Valve is tested with nitrogen at 1000 psig (69 bar).Valve have max allowable leak rate of 0.1 cm³/min.Shell testing is available upon request
