Super Air Amplifier 120020 - Low Noise Level Air Efficiency

Name: Super Air Amplifier 120020 - Low Noise Level Air Efficiency
Brand: Exair LLC
SKU: SUP-0c1412
Price: 349.99 USD
Availability: OutOfStock

SKU:SUP-0c1412

Enhanced Super Air Amplifier 120020 - Efficient, Quiet, OSHA-Compliant

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

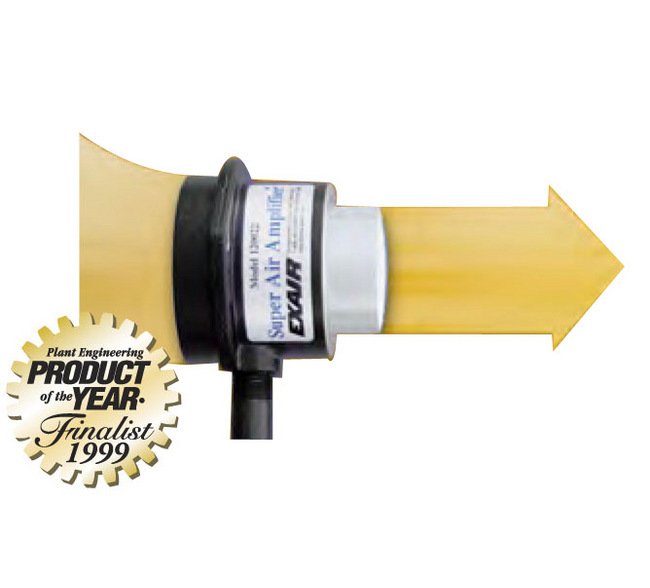

The Super Air Amplifier 120020 is a cutting-edge solution designed for efficient air amplification with minimal noise output. Featuring a patented design for precise air release intervals and high velocity airflow, this amplifier produces a sound level of 69 dBA, significantly quieter than traditional air movers. With customizable air gaps and impressive amplification ratios, it offers versatility for various applications. This compact, maintenance-free unit is portable, electric-free, and meets OSHA noise requirements, ensuring a safe and productive working environment.

Product Specifications

Specifications Advantages

Compared to Fans :Compact, lightweight, portableNo electricityNo moving parts – no maintenanceEnds are easily ductedInstant on/offVariable force and flowNo RF interferenceCompared to Venturis and Ejectors:More air with lower compressed air consumptionHigher flow amplificationNo internal obstructionsMeets OSHA pressure and noise requirementsQuiet

Specifications Air Consumption

6.1 SCFM | 173 SLPM

Specifications Air Volume At 6 In 152 Mm

219 SCFM | 6198 SLPM

Specifications Air Volume At Outlet

73 SCFM | 2066 SLPM

Specifications Amplification

12 Ratio

Specifications Applications

Specifications Corrosive Applications

Specifications Dimension B

0.75 in | 19 mm

Specifications Dimension F

0.20 in | 5 mm

Specifications Dimension G

0.18 in | 5 mm

Specifications Dimension H

0.53 in | 13 mm

Specifications Dimension J

0.73 in | 19 mm

Specifications Dimension K

2.50 in | 64 mm

Specifications Dimension L

0.59 in | 15 mm

Specifications Efficiency

High

Specifications Flow Adjustment

With Shims

Specifications Housing Length

0.98 in | 25 mm

Specifications Inside Diameter

0.45 in | 11 mm

Specifications Mounting Flange

Yes

Specifications Note

Tested with .003" (0.08 mm) shim.

Specifications Outlet Diameter

3/4 in | 19 mm

Specifications Outside Diameter

1.77 in | 45 mm

Specifications Overall Length

2.28 in | 58 mm

Specifications Pressure

80 psig | 5.5 bar

Specifications Sound Level

69 dBA

Specifications Temperature Rating

275 ºF | 135 ºC

Specifications Thread Size

1/8 in

Specifications Thread Type

NPT
