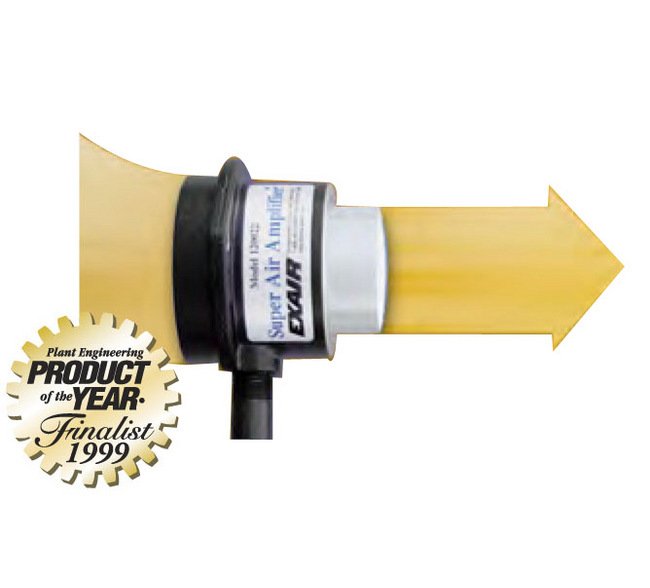

Super Air Amplifier 120024 - Low Noise Level Air Mover
Super Air Amplifier 120024 - Low Noise Level Air Mover
SKU:SUP-df92d3
Revolutionary noise-reducing Super Air Amplifier delivering high-velocity airflow with precision engineering for diverse applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Super Air Amplifier 120024 - Low Noise Level Air Mover
$249.99
Quantity: 1
Claim Your Seller Account
Super Air Amplifier 120024 - Low Noise Level Air Mover
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Super Air Amplifier 120024 is a revolutionary air amplification device designed with precision engineering to deliver a constant, high-velocity airflow with minimal noise output, registering a sound level as low as 73 dBA. Its patented design ensures optimal performance by releasing compressed air at exact intervals, resulting in amplified air volume ideal for various applications. With a compact and lightweight build, this air mover offers a portable and maintenance-free solution, eliminating the need for electricity and featuring easy flow adjustment capabilities. Perfect for clean machined parts, heat distribution in molds, ventilation needs, and more, this Super Air Amplifier provides superior efficiency and compliance with OSHA noise requirements.
Product Specifications
Specifications Advantages
Compared to Fans :Compact, lightweight, portableNo electricityNo moving parts – no maintenanceEnds are easily ductedInstant on/offVariable force and flowNo RF interferenceCompared to Venturis and Ejectors:More air with lower compressed air consumptionHigher flow amplificationNo internal obstructionsMeets OSHA pressure and noise requirementsQuiet
Specifications Air Consumption
29.2 SCFM | 826 SLPM
Specifications Air Volume At 6 In 152 Mm
2190 SCFM | 61977 SLPM
Specifications Air Volume At Outlet
730 SCFM | 20659 SLPM
Specifications Amplification
25 Ratio
Specifications Applications
Clean Machined Parts | Cool Hot Parts | Distribute Heat in Molds/Ovens | Dry Wet Parts | Dust Collection | Exhaust Tank Fumes | Vent Welding Smoke | Ventilate Confined Areas
Specifications Corrosive Applications
No
Specifications Dimension B
2.81 in | 71 mm
Specifications Dimension F
0.55 in | 14 mm
Specifications Dimension G
0.55 in | 14 mm
Specifications Dimension H
1.75 in | 44 mm
Specifications Dimension J
3.97 in | 101 mm
Specifications Dimension K
4.75 in | 121 mm
Specifications Dimension L
0.94 in | 24 mm
Specifications Efficiency
High
Specifications Flow Adjustment
With Shims
Specifications Housing Length
4.91 in | 125 mm
Specifications Inside Diameter
3.02 in | 77 mm
Specifications Mounting Flange
Yes
Specifications Note
Tested with .003" (0.08 mm) shim.
Specifications Outlet Diameter
4 in | 102 mm
Specifications Outside Diameter
6.89 in | 175 mm
Specifications Overall Length
8.42 in | 214 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
73 dBA
Specifications Temperature Rating
275 ºF | 135 ºC
Specifications Thread Size
1/2 in
Specifications Thread Type
NPT
