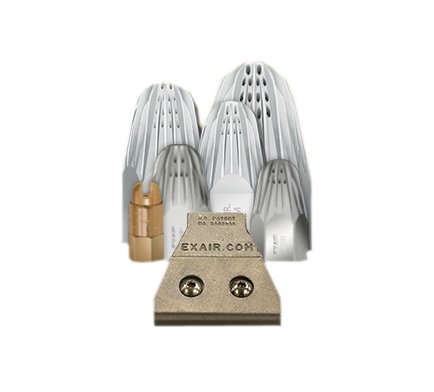

Super Air Nozzle - High Force Air Nozzle 1120
Super Air Nozzle - High Force Air Nozzle 1120
SKU:HIG-c6036a
Super Air Nozzle 1120 - High-force airflow for efficient blowoff and material conveying.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Super Air Nozzle - High Force Air Nozzle 1120
$59.99
Quantity: 1
Claim Your Seller Account
Super Air Nozzle - High Force Air Nozzle 1120
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Super Air Nozzle 1120 is an exceptional choice for applications requiring high-impact blowing force. With a 1-1/4 NPT inlet and a zinc aluminum alloy construction, it delivers an impressive 23 lbs (10.43 kg) of blowing force at 80 psig pressure. This air nozzle stands out for its enhanced blowoff performance, compact design, and notable noise reduction of 10 dBA on average. Meeting OSHA noise level and pressure requirements, it also conserves compressed air, improving both safety and cost-efficiency. Ideal for Air Assist, Chip Removal, Fiber Conveying, and more, this Super Air Nozzle guarantees improved production and reduced compressed air costs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Advantages
10 dBA Average Noise Reduction | Compact | Conserve Compressed Air | Improved Blowoff Performance | Improved Production | Improved Safety | Meets OSHA Noise Level Requirements | Meets OSHA Pressure Requirements | Reduced Compressed Air Cost
Specifications Air Consumption
460 SCFM | 13026 SLPM
Specifications Applications
Air Assist | Chip Removal | Fiber Conveying | Liquid Blowoff | Material Conveying | Part Cleaning | Part Cooling | Part Drying | Part Ejection
Specifications Force
23 lb | 10433 g
Specifications Inlet
1-1/4 FNPT
Specifications Material
Zinc Aluminum alloy
Specifications Note
Force measured at 12" (305 mm) from target
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
109 dBA
