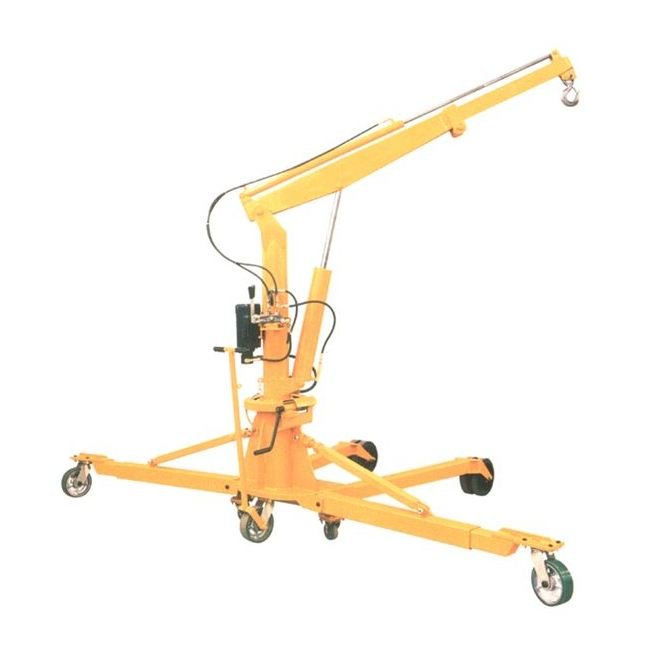

The Super-Master Mobile Hydraulic Floor Cranes offer unparalleled efficiency with their 2000 to 6000 lb. lift capacities and up to 13 ft. lift heights. Designed for precision and ease of movement, these cranes come with a range of optional features for diverse job requirements. With remote electric controls, hydraulic lifting cylinders, and the ability to convert into three different crane configurations, including a 360º rotating truck-mounted crane, these cranes provide exceptional flexibility and performance. Whether above or below ground level, on trucks, docks, or other locations, these cranes ensure reliable and safe material handling operations, meeting the most demanding industrial needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Description General Description

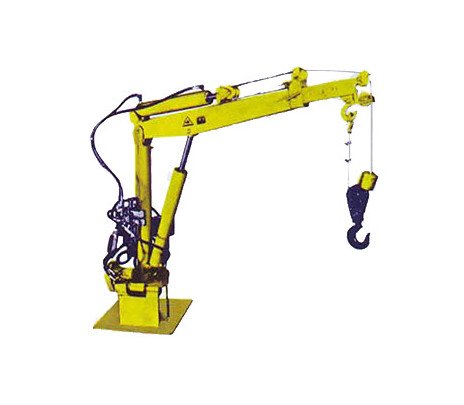

Remote electric controls available for powered units.Hydraulic lifting cylinder provides precise positioning control. The standard heavy-duty hydraulic lifting cylinder is handpump operated. Optional battery or 110 volt A/C power is available. Optional microflow control valve makes precise lifting and lowering possible.A unique design-converts in seconds to three different cranes. Can be used as a standard hydraulic floor crane, a mobile crane with 150º mast rotation (capacity drops 50%), and a 360º fully rotating truck or floor-mounted crane.
Note Note
Outriggers must be locked into position before rotating the boom on the mobile crane version.Specifications are for standard manual units.Counterweights of approximately 150 lbs. per foot of boom extension per 1000 lbs. of load must be secured to base when loaded to achieve maximum capacity. Counterweights not included.
Specifications Accessories Attachments
#A - Adjustable Legs | #BP - Baseplates (truck-mounted shown here) | #C2 - Winch Operated Cable Lift | #C4 - Winch Operated Cable Lift | #C6 - Winch Operated Cable Lift | #GN - Gooseneck Boom | #P16 - Large Pneumatic Wheel | #S12 - Extra-Large Wheel | #SMO-1 - Outriggers | #SMO-4 - Outriggers | #SM-PC-2 - Hydraulically-Operated Cable Lift | #SM-PC-4 - Hydraulically-Operated Cable Lift | #SM-PC-6 - Hydraulically-Operated Cable Lift | #SPB - Self Propelled Walkie-Type Drive | #TB - Powered Telescopic Boom | #TL - Telescopic Legs | #XW - Extra Wide Wheelbase
Specifications Adjustable Boom Length
54 to 94 in
Specifications Approx Shipping Weight
500 lb
Specifications Capacity Boom Extended
1000 lb
Specifications Capacity Boom Retracted
2000 lb
Specifications Casters Rigid Two
8 x 2.5
Specifications Casters Swivel Two
Dual 6 x 2
Specifications Floor To Hook Height Boom Extended
18 in
Specifications Floor To Hook Height Boom Retracted
30 in
Specifications Mast Rotation Angle
150 º
Specifications Maximum Lift Height Boom Extended
12 ft
Specifications Maximum Lift Height Boom Retracted
8 ft
Specifications Maximum Reach
78 in
Specifications Maximum Reach Beyond Wheels
32 in
Specifications Options
110 AC Operated Cable Lifts | 110V AC operated Barrel Lifter/Dumper | 110V AC operated Powered lifting cylinder | Air motor operated Powered lifting cylinder | Battery Operated Cable Lifts | For Boom Lift & Lower Remote Electric | For Cable-Lift Remote Electric | For Power Rotation Remote Electric Battery operated (battery not included) Powered lifting cylinder | For Telescopic Boom Remote Electric | Hand chain Barrel Lifter/Dumper Adjustable Telescopic Legs Hankcrank Mast Rotation | Handcrank Barrel Lifter/Dumper | Hydraulic Operated Cable Lifts Manual Barrel Lifter/Dumper | Outrigger with casters (pair) Winch Operated Cable Lifts | Powered Mast Rotation Controls Remote Electric | Self-Propelled Walkie-Type Powered lifting cylinder | SM-2000/4000-BP - For full rotation Baseplates | SM-6000-BP - For full rotation Baseplates Standard (pair) Outriggers | Telescopic Boom Powered lifting cylinder
Specifications Overall Height Without Cable Lift
60 in
Specifications Overall Height With Cable Lift
66 in
Specifications Overall Length
72 in
Specifications Overall Width Width Inside Wheelbase
36 in
Specifications Overall Width With Outriggers Extended
120 in
Specifications Wheel Material
Steel
