Super Orlock 18.5mm Steel/Stainless Steel Rivet
Super Orlock 18.5mm Steel/Stainless Steel Rivet
SKU:SUP-65ade6
Experience the Super Orlock 18.5mm Rivet - unmatched strength and reliability for high-force requirements. Ideal for rail transport and renewable energy projects.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Super Orlock 18.5mm Steel/Stainless Steel Rivet
$39.99
Quantity: 1
Claim Your Seller Account
Super Orlock 18.5mm Steel/Stainless Steel Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

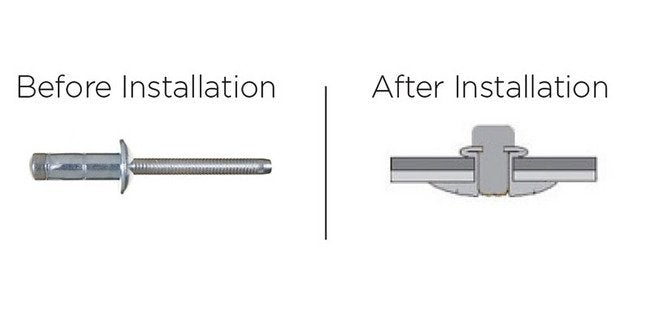

The Super Orlock 18.5mm Rivet is engineered for applications requiring extra-high forces, offering superior shear and tensile strengths along with a wide grip range. Made with low carbon steel and Austenitic Stainless Steel AISI 304, featuring a zinc-coated chromium VI-free finish. With a protruding head design, this rivet ensures secure, vibration-resistant joints, perfect for rail transport and renewable energy applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Rail Transport Application
Cable CarWhen extra forces are required, the Super Orlock⢠is the solution. The Super Orlock⢠provides higher shear and tensile strengths, a wider grip range and creates an extremely secure, vibrationâresistant joint. The stainless steel version is also commonly used for this type of application.TrainsWhen extra forces are required, the Super Orlock⢠is the solution. The Super Orlock⢠provides higher shear and tensile strengths, a wider grip range and creates an exceptionally secure, vibrationâresistant joint. The stainless steel version is also available in a variety of grades.
Applications Renewable Energy Application
Solar FramesThe Orlock⢠Stainless Steel is commonly used in a variety of solar applications worldwide. This stainless steel rivet provides a permanent, secure joint in the most severe climate conditions. Also available in 316.
Nominal Dimensions Body Length
18.5 mm | 0.728 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.7 to 6.9 mm | 0.263 to 0.271 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
12.5 mm | 0.492 in
Nominal Dimensions Minimum Grip Range
9.0 mm | 0.354 in
Nominal Forces Nominal Shear Force
810 kgf | 1782 lbf
Nominal Forces Nominal Tensile Force
810 kgf | 1782 lbf
Technical Specs Body Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Super Orlockâ¢
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
