Super Orlock Protruding Head Rivet
Super Orlock Protruding Head Rivet
SKU:SUP-a3589b
Achieve unparalleled strength and durability with the Super Orlock Protruding Head Rivet, featuring low carbon steel body, stainless steel mandrel, and superior performance for high-force applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Super Orlock Protruding Head Rivet
$39.99
Quantity: 1
Claim Your Seller Account
Super Orlock Protruding Head Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

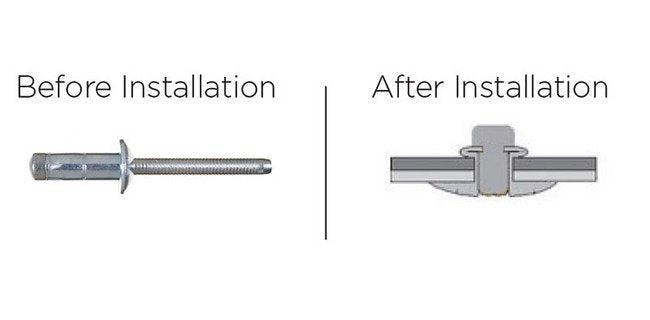

The Super Orlock Protruding Head Rivet is the ultimate solution for applications requiring extra-high forces. With superior shear and tensile strengths, a wide grip range, and a body made of low carbon steel with zinc coating, this rivet ensures exceptional performance and durability. The mandrel, crafted from AISI 304 stainless steel, offers natural finish for added corrosion resistance. Ideal for rail transport, renewable energy, and industrial uses, the Super Orlock rivet guarantees a secure, vibration-resistant joint in the most demanding conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Rail Transport Application
Cable CarWhen extra forces are required, the Super Orlock⢠is the solution. The Super Orlock⢠provides higher shear and tensile strengths, a wider grip range and creates an extremely secure, vibrationâresistant joint. The stainless steel version is also commonly used for this type of application.TrainsWhen extra forces are required, the Super Orlock⢠is the solution. The Super Orlock⢠provides higher shear and tensile strengths, a wider grip range and creates an exceptionally secure, vibrationâresistant joint. The stainless steel version is also available in a variety of grades.
Applications Renewable Energy Application
Solar FramesThe Orlock⢠Stainless Steel is commonly used in a variety of solar applications worldwide. This stainless steel rivet provides a permanent, secure joint in the most severe climate conditions. Also available in 316.
Nominal Dimensions Body Length
10.5 mm | 0.413 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.7 to 6.9 mm | 0.263 to 0.271 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
4.5 mm | 0.177 in
Nominal Dimensions Minimum Grip Range
2.0 mm | 0.079 in
Nominal Forces Nominal Shear Force
1100 kgf | 2420 lbf
Nominal Forces Nominal Tensile Force
810 kgf | 1782 lbf
Technical Specs Body Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Super Orlockâ¢
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
