Super Orlock Steel Protruding Rivet
Super Orlock Steel Protruding Rivet
SKU:SUP-e99b5a
Boost structural strength with Zinc-Plated Steel Rivets - Perfect for Secure & Vibration-Resistant Joints in Rail Transport
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order

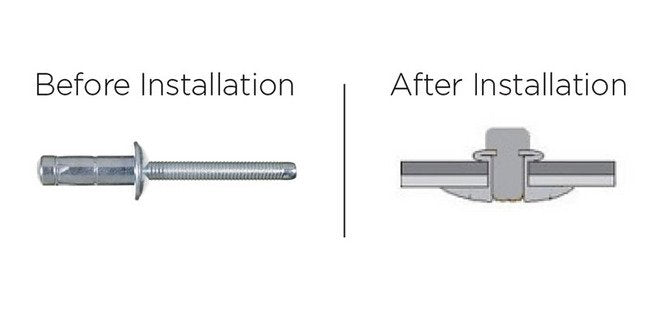

Super Orlock Steel Protruding Rivet
$39.99
Quantity: 1
Claim Your Seller Account
Super Orlock Steel Protruding Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance structural integrity with the Super Orlock Steel Protruding Rivet. Featuring high shear and tensile strength, a wide grip range, and zinc-plated chromium construction, this rivet ensures secure, vibration-resistant joints. Ideal for rail transport applications like cable cars and trains, meeting stringent industry standards for durability and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Rail Transport Application
Cable CarWhen extra forces are required, the Super Orlock⢠is the solution. The Super Orlock⢠provides higher shear and tensile strengths, a wider grip range and creates an extremely secure, vibration-resistant joint. The stainless steel version is also commonly used for this type of application.TrainsWhen extra forces are required, the Super Orlock⢠is the solution. The Super Orlock⢠provides higher shear and tensile strengths, a wider grip range and creates an exceptionally secure, vibrationâresistant joint. The stainless steel version is also available in a variety of grades.
Nominal Dimensions Body Length
14.5 mm | 0.571 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.7 to 6.9 mm | 0.263 to 0.271 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
8.5 mm | 0.335 in
Nominal Dimensions Minimum Grip Range
5.0 mm | 0.197 in
Nominal Forces Nominal Shear Force
1400 kgf | 3080 lbf
Nominal Forces Nominal Tensile Force
810 kgf | 1782 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock⢠| Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
