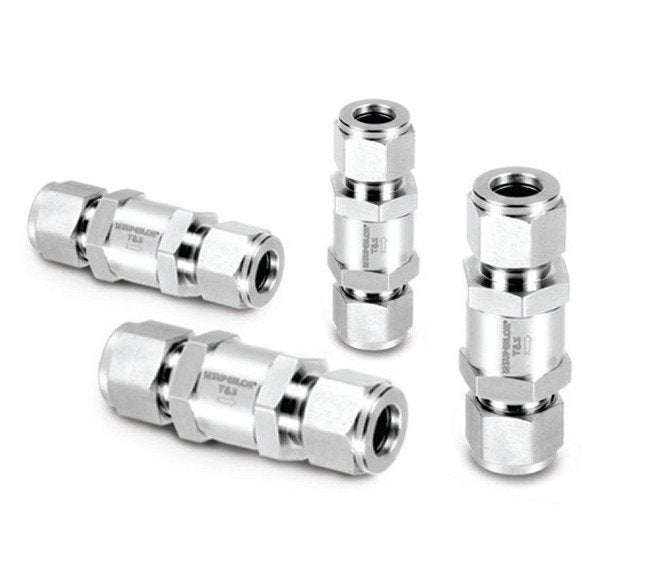

SUPERLOK High Pressure Check Valve with 7.8mm Orifice & 12mm End Connections
SUPERLOK High Pressure Check Valve with 7.8mm Orifice & 12mm End Connections
SKU:SHC-91aef0
High pressure check valve with 7.8mm orifice, 12mm SUPERLOK® end connections. Pressure rating up to 6,000 psig, tested for performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SUPERLOK High Pressure Check Valve with 7.8mm Orifice & 12mm End Connections
$89.99
Quantity: 1
Claim Your Seller Account
SUPERLOK High Pressure Check Valve with 7.8mm Orifice & 12mm End Connections
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SHCV2 Series 7.8mm Orifice Check Valve with 12mm SUPERLOK® End Connections offers a high pressure rating up to 6,000 psig, ensuring reliable performance. Constructed with 316 Stainless Steel for durability and available seal materials including EPDM, FKM, and NBR, this valve is ideal for various industrial applications. Tested for cracking pressure and reseal performance, it guarantees precision and quality.
Product Specifications
Features Features
Pressure rating up to 6,000 psig(413 bar) at 100 ºF (37 ºC)Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar)Variety of end connections316 stainless steel body material as standard.Each and every valve is tested for cracking pressure and reseal performance at the factory.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass

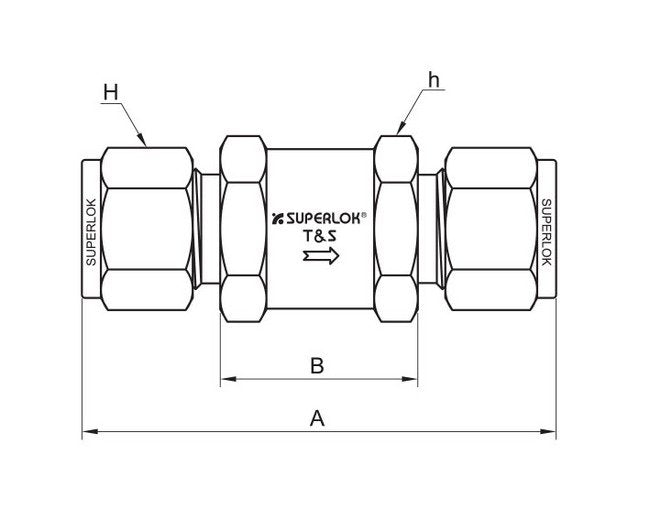

Technical Specs Dimension A
75.2 mm
Technical Specs Dimension B
31.2 mm
Technical Specs Dimension H
22 mm
Technical Specs End Connections
12 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
1.80
Technical Specs Orifice Size
7.8 mm
Technical Specs Pressure Rating
6000 psig | 413 bar
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR)
Technical Specs Temperature Rating With Standard Fluorocarbon Fk
375 ºF | 190 ºC
