Superlok Low Pressure Relief Valve - 1/2 Inch
Superlok Low Pressure Relief Valve - 1/2 Inch
SKU:REL-8a586f
Premium SUPERLOK® 1/2 inch Low Pressure Relief Valve for precise industrial pressure regulation and system protection.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Superlok Low Pressure Relief Valve - 1/2 Inch
$89.99
Quantity: 1
Claim Your Seller Account
Superlok Low Pressure Relief Valve - 1/2 Inch
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

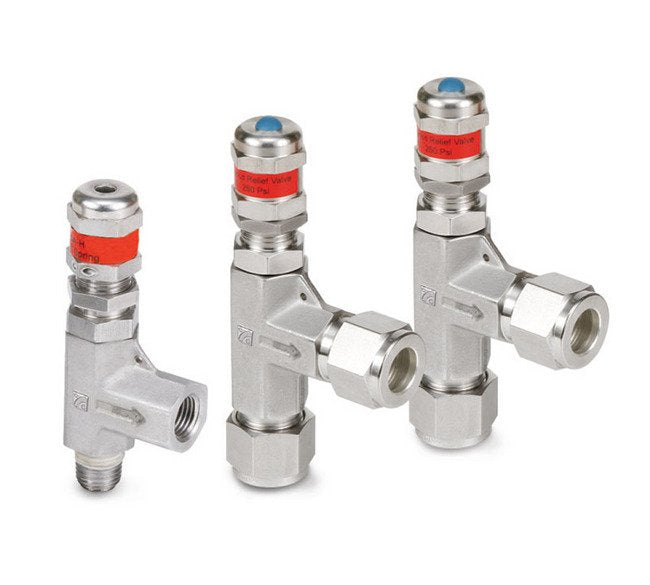

The SUPERLOK® SRVL Series Low Pressure Relief Valve offers superior performance for industrial applications. With a maximum working pressure of 300 psig, adjustable cracking pressure, compact design, and lock wire feature, this valve ensures precise pressure regulation. Each valve is factory-tested for reliability and consistency. Ideal for maintaining system integrity and preventing overpressure situations.
Product Specifications
Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
10~250 psig | 0.69~17.2 bar

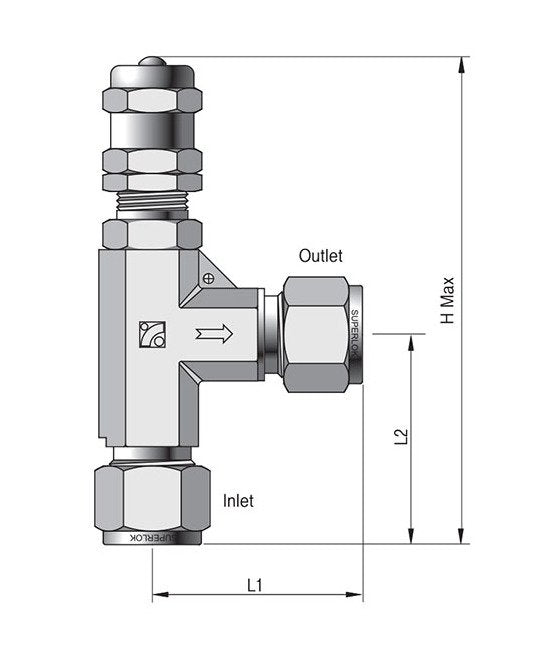

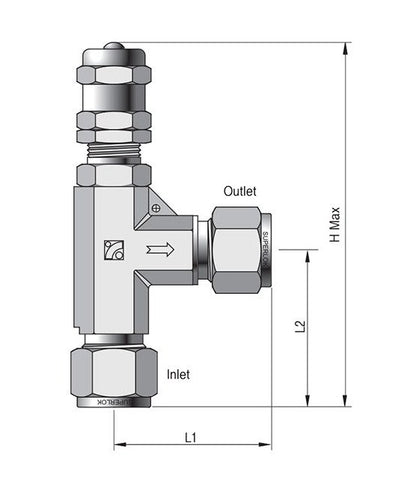

Technical Specs Dimension H
114.0 mm
Technical Specs Dimension L1
46.7 mm
Technical Specs Dimension L2
46.7 mm
Technical Specs Inlet End Connections
1/2 in. SUPERLOK®
Technical Specs Maximum Working Pressure
300 psig | 206 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/2 in. SUPERLOK®
Technical Specs Series
SRVL
