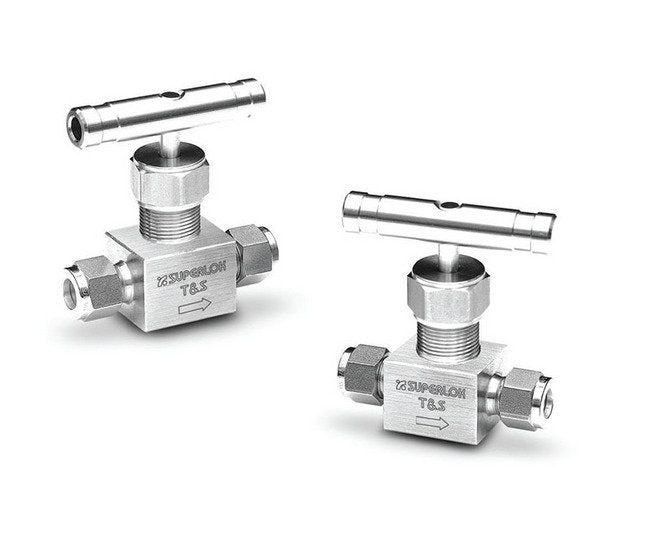

Superlok SBNV Series 1/2 Inch Integral Bonnet Bar Stock Needle Valve
Superlok SBNV Series 1/2 Inch Integral Bonnet Bar Stock Needle Valve
SKU:SBN-bce7f2
Precision flow control with durable 316 Stainless Steel construction and versatile design for industrial use.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Superlok SBNV Series 1/2 Inch Integral Bonnet Bar Stock Needle Valve
$129.99
Quantity: 1
Claim Your Seller Account
Superlok SBNV Series 1/2 Inch Integral Bonnet Bar Stock Needle Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Superlok SBNV Series 1/2 Inch Integral Bonnet Bar Stock Needle Valve offers precise flow control with an orifice size of 0.25 inches, and durable construction with 316 Stainless Steel body. Its compact design, low operating torques, and variety of end connections make it versatile for different applications. Tested to meet stringent standards, this valve ensures reliability and performance in industrial environments.
Product Specifications
Features Features
Integral bonnet designBar stock bodyCompact designLow operating torquesVariety of End ConnectionsStraight and Angle flow patternsEach and every valve is tested at the factory
Handle Handle
Anodized Black Aluminum Bar Handle | Black Phenolic Knob Handle | Stainless Steel Bar Handle (Standard)
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Alloy 400 (Monel)

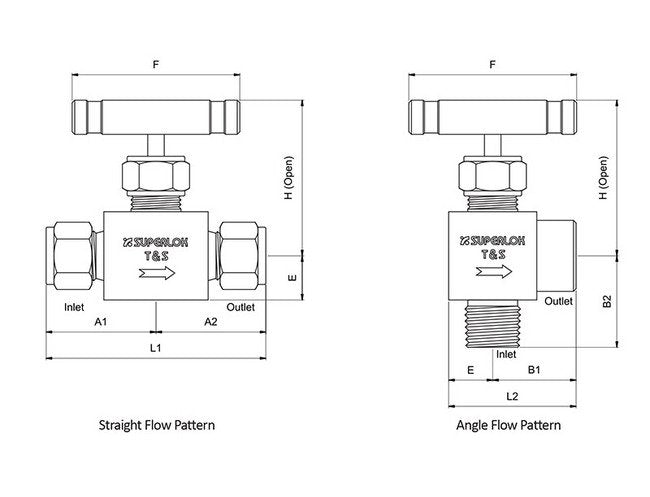

Technical Specs Dimension A1
41.9 mm
Technical Specs Dimension A2
41.9 mm
Technical Specs Dimension F
64.0 mm
Technical Specs Dimension H
63.0 mm
Technical Specs Dimension L1
83.8 mm
Technical Specs Flow Coefficients Cv
0.73
Technical Specs Inlet End Connections
1/2 in. SUPERLOK®
Technical Specs Orifice Size
0.25 in | 6.4 mm
Technical Specs Outlet End Connections
1/2 in. SUPERLOK®
Technical Specs Packing Material
Polyether Ether Ketone (PEEK) | Polytetrafluoroethylene (PTFE) (Standard)
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 38 De
413 bar | 6000 psig
Technical Specs Stem Type
Soft Seat Stem | Vee Stem (Standard)
Technical Specs Temperature Rating With Polyether Ether Ketone P
-65 to 600 ºF | -54 to 315 ºC
Technical Specs Temperature Rating With Polytetrafluoroethylene
-65 to 450 ºF | -54 to 232 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig (69 bar) to maximum allowable leak rate of 0.1 SCCM.Hydrostatic shell test is performed at 1.5 times of the working pressure. (Optional)
