SUPERLOK SBTH 3.8mm Trunnion Ball Valve
SUPERLOK SBTH 3.8mm Trunnion Ball Valve
SKU:SBT-52d35a
High-pressure 3.8mm Trunnion Ball Valve for industrial use. Stainless steel body with PEEK bearings, low torque, and panel mountable design.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
SUPERLOK SBTH 3.8mm Trunnion Ball Valve
$189.99
Quantity: 1
Claim Your Seller Account
SUPERLOK SBTH 3.8mm Trunnion Ball Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUPERLOK SBTH Series 3.8mm Three-Way Trunnion Ball Valve is engineered for high-pressure applications up to 10,000 psig. Featuring PEEK trunnion bearings for extended cycle life, this valve ensures reliable shut-off with low operating torque. With stainless steel body construction and innovative design, it offers superior performance and durability in extreme conditions. Panel mountable and factory tested, it guarantees precision and efficiency for industrial operations.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Three-Way Valve
Technical Specs Body Material
Stainless Steel

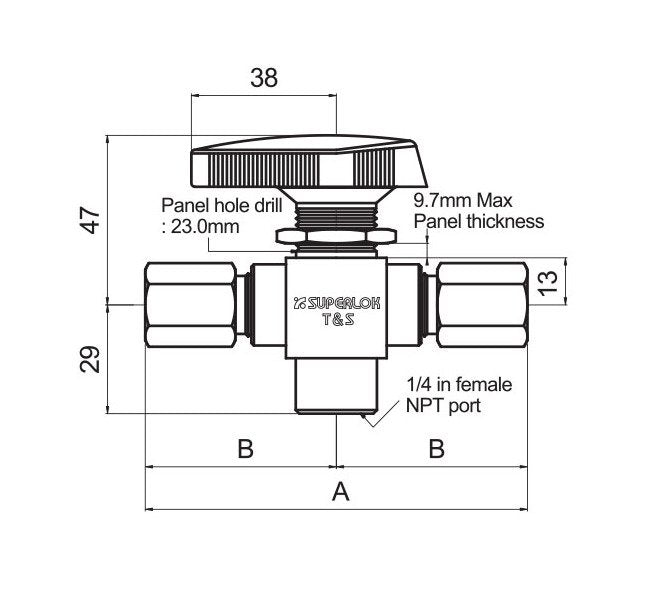

Technical Specs Dimension A
105 mm
Technical Specs Dimension B
52.6 mm
Technical Specs Flow Coefficients Cv
0.75
Technical Specs Inlet End Connections
1/4 in. SUPERLOK®
Technical Specs Orifice Size
3.8 mm
Technical Specs Outlet End Connections
1/4 in. SUPERLOK®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
