Superlok SBTH Series 4.8mm Two-Way Trunnion Ball Valve
Superlok SBTH Series 4.8mm Two-Way Trunnion Ball Valve
SKU:SBT-03754a
Reliable shut-off with high pressure and temperature capabilities for critical applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Superlok SBTH Series 4.8mm Two-Way Trunnion Ball Valve
$249.99
Quantity: 1
Claim Your Seller Account
Superlok SBTH Series 4.8mm Two-Way Trunnion Ball Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Superlok SBTH Series 4.8mm Two-Way Trunnion Ball Valve is engineered for reliable shut-off or switching functions, featuring upper and lower trunnion bearings for enhanced resistance against seizure. With a compact design and PEEK trunnion bearings, it ensures longer cycle life, low torque operation, and high pressure and temperature performance, meeting pressures up to 6000 psi and temperatures from 0 to 450°F. Suitable for institutional and government procurement, this valve boasts a blow-out resistant design, panel mountability, positive handle stops, and 100% factory testing for consistent quality and performance.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

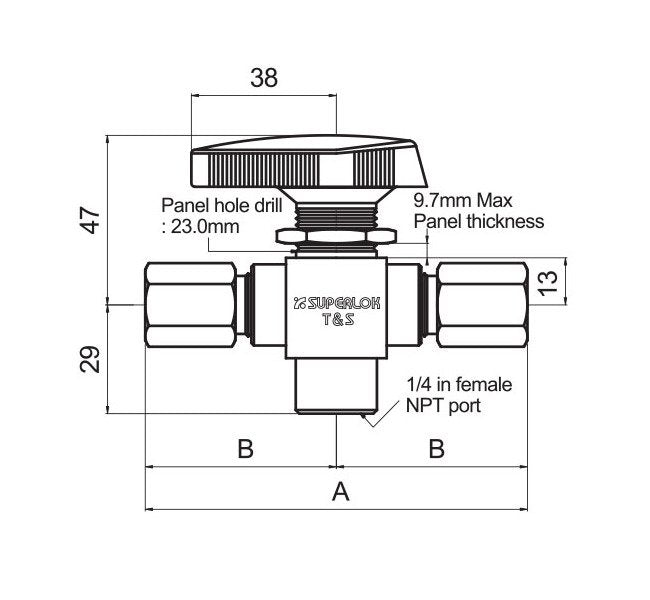

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Two-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
117 mm
Technical Specs Dimension B
58.4 mm
Technical Specs Flow Coefficients Cv
1.0
Technical Specs Inlet End Connections
12 mm Superlok®
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
12 mm Superlok®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
