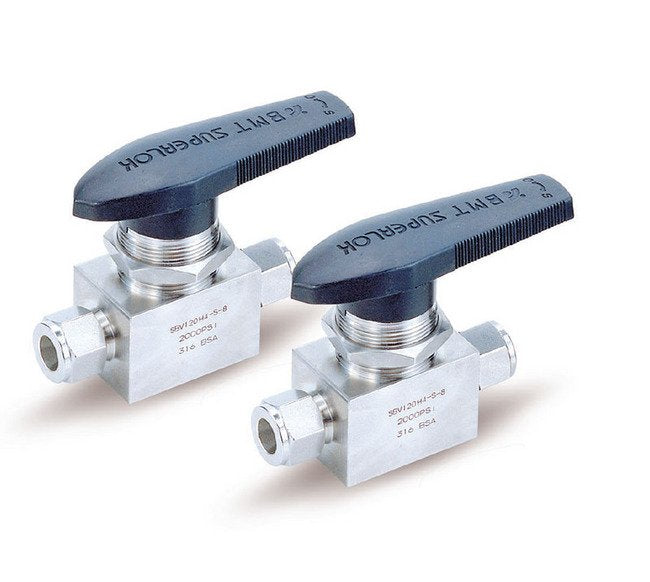

Superlok SBV120H 6mm One-Piece Type Ball Valve
Superlok SBV120H 6mm One-Piece Type Ball Valve
SKU:SBV-4fe25d
Superlok SBV120H 6mm One-Piece Type Ball Valve - High pressure, easy operation, durable stainless steel design.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Superlok SBV120H 6mm One-Piece Type Ball Valve
$129.99
Quantity: 1
Claim Your Seller Account
Superlok SBV120H 6mm One-Piece Type Ball Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Superlok SBV120H Series 6mm One-Piece Type Ball Valve is a precision-engineered valve designed for high-pressure applications. With a pressure rating of 2500 psig and a flow coefficient of 0.9, this valve ensures reliable performance in demanding conditions. Constructed from 316 Stainless Steel, it offers exceptional durability and corrosion resistance. The valve features easy operation, tight sealing, and low torque requirements. Tested for leak-tightness and with a temperature rating of 50 to 150 °F, this valve is ideal for industrial, government, and institutional use.
Product Specifications
Features Features
Simple design with one piece bodyTight and smooth, low torque and easy operationOne-piece ball stemPanel mountableVariety of End ConnectionsStraight, Angle and 3-Way flow patternsEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Packing Adjustment Packing Adjustment
Valves are adjusted for factory testing at 1000 psig (69 bar).Packing must be readjusted for service at higher pressures.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
30.2 mm
Technical Specs Dimension A1
30.2 mm
Technical Specs Dimension B
60.4 mm
Technical Specs Dimension D
10.0 mm
Technical Specs Dimension E
10.0 mm
Technical Specs Dimension F
4.8 mm
Technical Specs Dimension G
19.8 mm
Technical Specs Dimension H
43.7 mm
Technical Specs Dimension I
38.5 mm
Technical Specs Dimension W
21 mm
Technical Specs Flow Coefficients Cv
0.9
Technical Specs Inlet End Connections
6 mm Superlok®
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
6 mm Superlok®
Technical Specs Pattern
3-Way Switching Valve
Technical Specs Pressure Rating
2500 psig | 172 bar
Technical Specs Temperature Rating With Polytetrafluoroethylene
50 to 150 ºF | 10 to 65 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig (69 bar) to maximum allowable leak rate of 0.1 SCCM.
